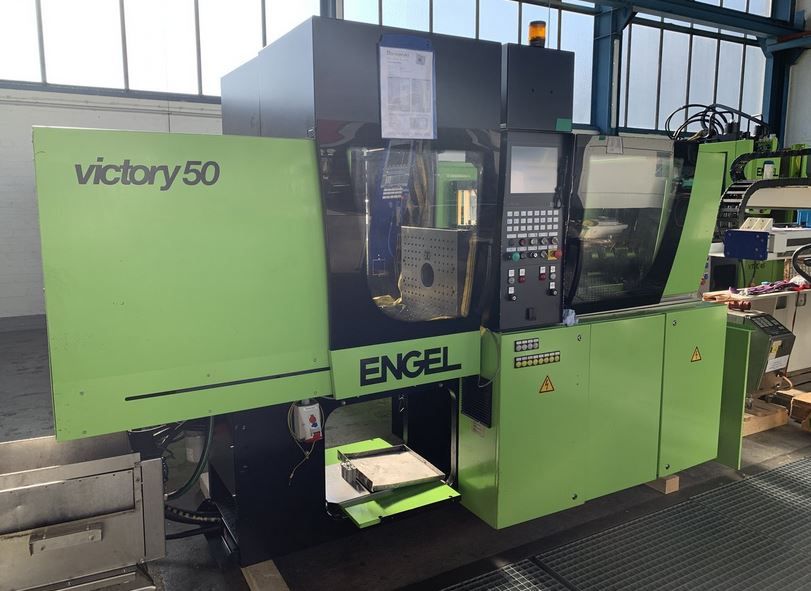

Engel Victory 200-50 Standard 50 T

Controller: CC200
Year of construction: 2006

Technical data clamping unit
clamping force: 500 kN
size of mould plates h: 500 mm
size of mould plates v: 450 mm
min. mould height: 200 mm
max. open daylight: 600 mm
opening stroke: 400 mm
ejector stroke: 100 mm
ejector force: 40 kN
centering diameter of moving platen: 90 mm
centering diameter of fixed platen: 120 mm

Technical data injection unit
screw diameter: 35 mm
swept volume: 135 ccm
injection pressure: 1065 bar
screw length: 17 l/d
screw stroke: 140 mm
injection rate into the open: 172 g/s PS
number of heating zones: 4
nozzle stroke: 200 mm

Measures & weight
measures of machine lxbxh: 3.4m x 1.3m x 1.8m
total weight: 2700KG

Equipment included
screen text german
CEE-socket 16A
core pulling hydraulically 1x
air valve 3x
machine incl. water flow regulator
machine without material hopper
Anti vibration mounts
Schuko-socket 10A
