Famup TCS40-TCU 2350 U/Min
EUROPE (Western and Northern)

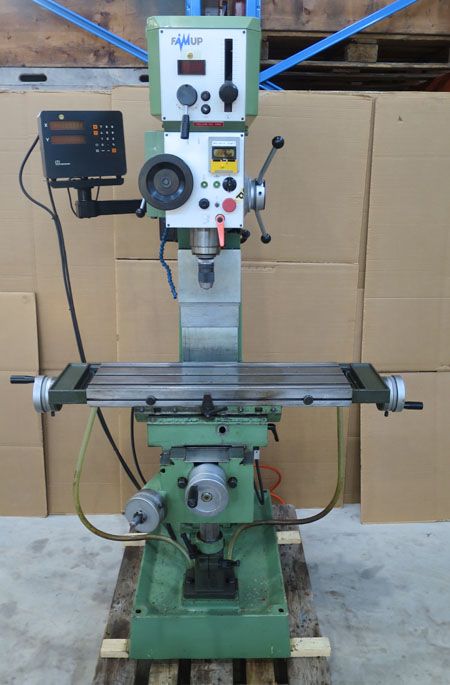

FAMUP TCS40-TCU
With integrated cross table.
With digital read-out.
Drilling capacity in steel
35 mm
Drilling capacity in cast iron
40 mm
Spindle taper: Taper no
40
Throat (distance between column and spindle center)
300 mm
Drilling depth
130 mm
Cross table: clamping surface
800x250 mm
Longitudinal travel
500 mm
Cross travel
240 mm
Tilting: +/-
45 Grad
Swivelling: + -
45/60 Grad
Distance between working table and spindle nose
570 mm
Table vertical adjustment
440 mm
Spindle speeds:
Inf. variable: From - up to
64-2350 U/Min
Quill feed:
From - up to
0,05-0,2 mm/Umdr.
Motor 400 volt, power
3 PS
Size of machine: width/depth/height approx
1350x1300x2000 mm
Weight approx
880 Kg
Accessories and equipment:
Digital read-out: Manufacture
HEIDENHAIN
Number of axes
2
Drill chuck: No
1
Tool holder:
Number
9
Vice: Jaw width
125 mm
Rotating.
Tool cabinet.
Coolant.
