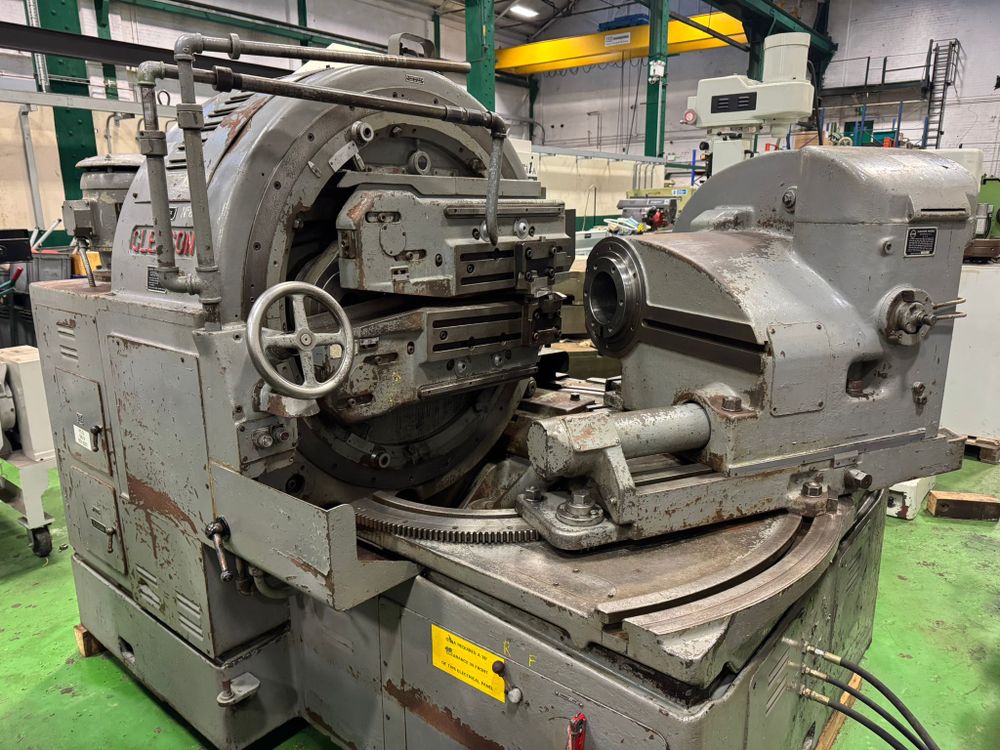

Gleason 24 Variable Speed Straight Bevel Gear Generator with Change Gears & Setting Gauges

Longest cone distance (1.75" stroke): 18"
Shortest cone distance: 0
Maximum pitch angle: 84°18'
Minimum pitch angle: 5°42'
Extreme ratio: 10:1

Maximum pitch diameter (10:1 ratio): 35.5"
Maximum pitch diameter (2:1 ratio): 31.75"
Maximum pitch diameter (1:1 ratio): 25"
Maximum pitch (Gleason system): 1.5 DP
Maximum face length: 6"

Stroke length: 1.25"–8"
Minimum number of teeth in miter: 13
Work spindle diameter of taper hole at large end: 6"
Taper per foot: 0.75"
Depth of taper: 6"
Diameter of hole 18" deep from spindle face: 5.625"
Diameter of hole through spindle: 5"
Diameter of spindle nose: 9.25"
Spindle nose to centerline of machine: 5"–26"
Feeds: 22 feeds from 23 seconds to 10 minutes 45 seconds
Speeds: 13 speeds from 22 strokes per minute to 170 strokes per minute
Machine dimensions: 105" × 74" × 80"
Machine weight: 11 tons
Change gears
Setting gauges
