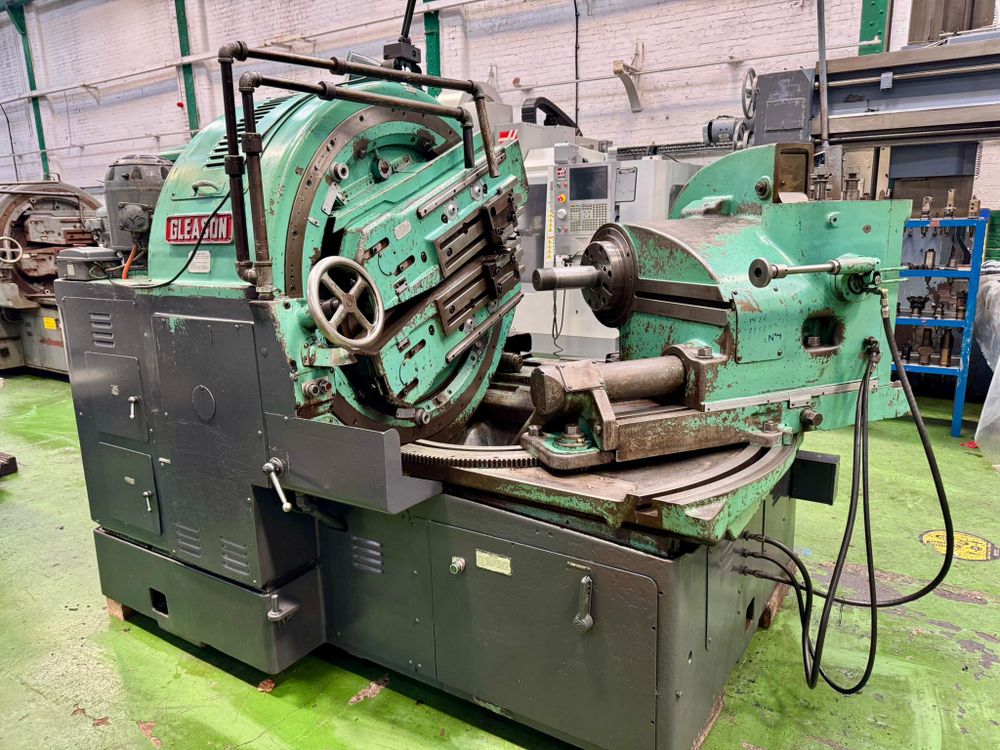

Gleason 24 Variable Speed Straight Bevel Gear Generator

Longest cone distance 18"
Shortest cone distance 0
Maximum pitch angle 84° 18′
Minimum pitch angle 5° 42′
Extreme ratio 10–1
Maximum pitch diameter (10–1 ratio) 35.5"
Maximum pitch diameter (2–1 ratio) 31.75"
Maximum pitch diameter (1–1 ratio) 25"
Maximum pitch 1.5 DP
Maximum face length 6"
Stroke length 1.25"–8"
Minimum number of teeth in miter 13
Work spindle diameter of taper hole at large end 6"
Taper per foot 0.75"
Depth of taper 6"
Diameter of hole 18" deep from spindle face 5.625"
Diameter of hole through spindle 5"
Diameter of spindle nose 9.25"
Spindle nose to centerline of machine 5"–26"
Feeds 22 feeds from 23 seconds to 10 minutes 45 seconds
Speeds 13 speeds from 22 strokes per minute to 170 strokes per minute
Machine dimensions L x W x H 105" x 74" x 80"
Approximate weight 11 tons

Features / Equipment
Change gears
Gauges
