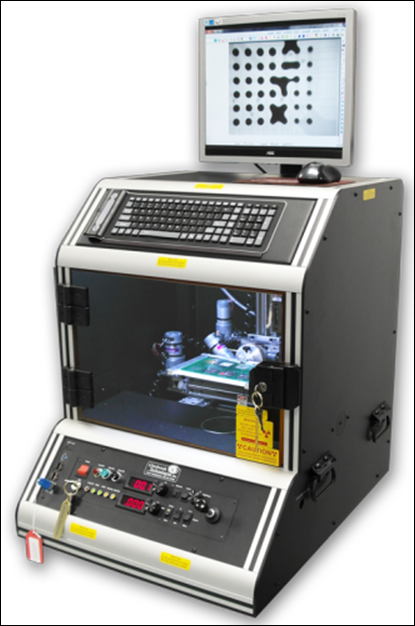

Glenbrook Jewel Box Ultra Compact

• Magnification: 7X to 2000X
• Variable Magnification: 7X to 500X
• Resolution: 10 microns (depending on magnification)
• Image Resolution: 100 line pairs/mm
• Field of View: 25 mm
• X-Ray Source: MicroTech™ microfocus source
• Focal Spot Size: 10 micron
• Anode Voltage: 0 to 80 kV adjustable
• Anode Current: Up to 200 µA adjustable
• Manipulator: Five-axis joystick positioner
• Rotation: 360°
• Tilt: 45°
• X/Y Object Travel Distance: 5” x 9”
• Laser Locator: Included for precise positioning
• Image Processor: GTI-2000 image processor
• Frame Averaging: Variable
• Contrast Adjustment: Included
• Measurement Capability: Included
• Image Save Formats: TIFF
• Image Save Formats: JPG
• Image Save Formats: AVI video
• Port Openings: For longer devices
• Exterior Dimensions: 22” W x 26” D x 27.25” H
• Operating Voltage: 120V 60Hz
• Operating Voltage: 220V 50Hz
• Certification: CE Approved
