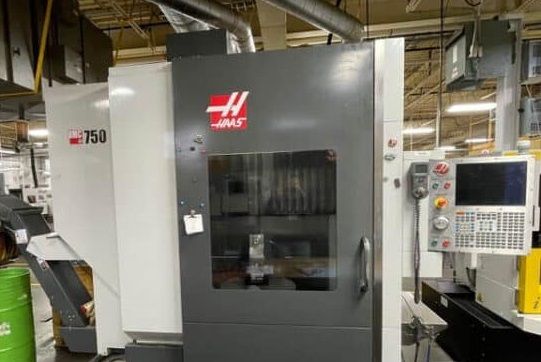

Haas UMC-750 3 Axis

Haas UMC-750 - 2014

TRAVELS
X Axis 30 ”
Y Axis 20 ”
Z Axis 20 ”
Spindle Nose to Table (~ max) 24 ”
Spindle Nose to Table (~ min) 4 ”
PLATTER
Platter Length 24.8 ”
Platter Width 19.7 ”
Max Weight on Platter 660 lb
T-Slot Width 5/8 ”
T-Slot Center Distance 2.48 ”
Number of Std T-Slots 7
B AXIS – TILT
Travel +110°, -35°
Max Speed 50°/sec
Max Torque 400 ft-lb
Brake Torque 1800 ft-lb
C-AXIS – ROTATION
Travel 360°
Max Speed 50°/sec
Max Torque 300 ft-lb
Brake Torque 500 ft-lb
SPINDLE (OPT)
Max Rating 30 hp
Max Speed 12000 rpm
Max Torque 90 ft-lb @ 2000 rpm
Drive System Inline Direct-Drive
Bearing Lubrication Air/Oil Injection
Cooling Air
Taper 40
FEEDRATES
Rapids on X 1200 in/min
Rapids on Y 1200 in/min
Rapids on Z 1200 in/min
Max Cutting 650 in/min
AXIS MOTORS
Max Thrust X 2750 lb
Max Thrust Y 2750 lb
Max Thrust Z 3400 lb
TOOL CHANGER
Type SMTC
Capacity 40+1
Max Tool Diameter (adjacent empty) 5 ”
Max Tool Diameter (full) 3 ”
Max Tool Length (from gage line) 12 ”
Max Tool Weight lb
Tool-to-Tool (avg) 2.8 sec
Chip-to-Chip (avg) 3.6 sec
GENERAL
Air Required 4 scfm, 100 psi
Coolant Capacity 75 gal

Equipped With (subject to buyer verification):
Haas CNC Control
12K spindle
Auxiliary coolant filter
Belt type chip conveyor
ETHERNET Interface
Second home position
High speed machining
Lifting kit
Programmable coolant
Remote jog handle
Rigid tapping
Sidemount toolchanger
Through spindle coolant 300 psi
Visual quick code
WIPS-Renishaw
Coordinate, rotation & scaling
Macro option
Spindle orientation
