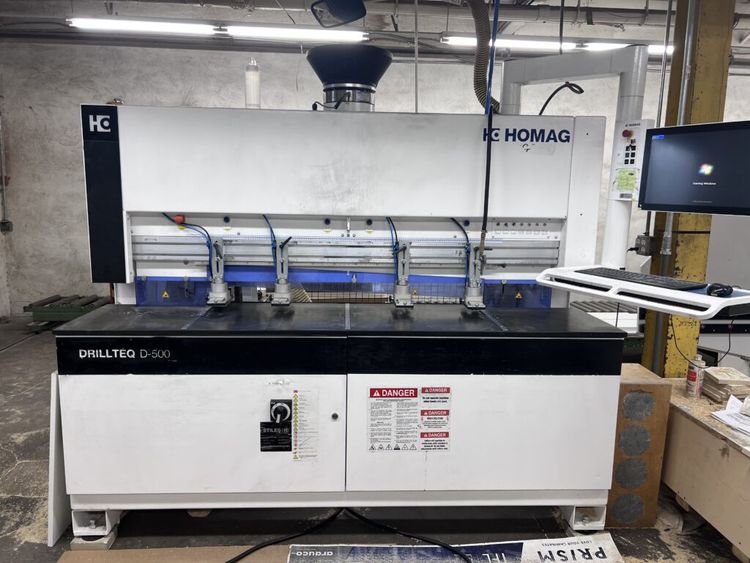

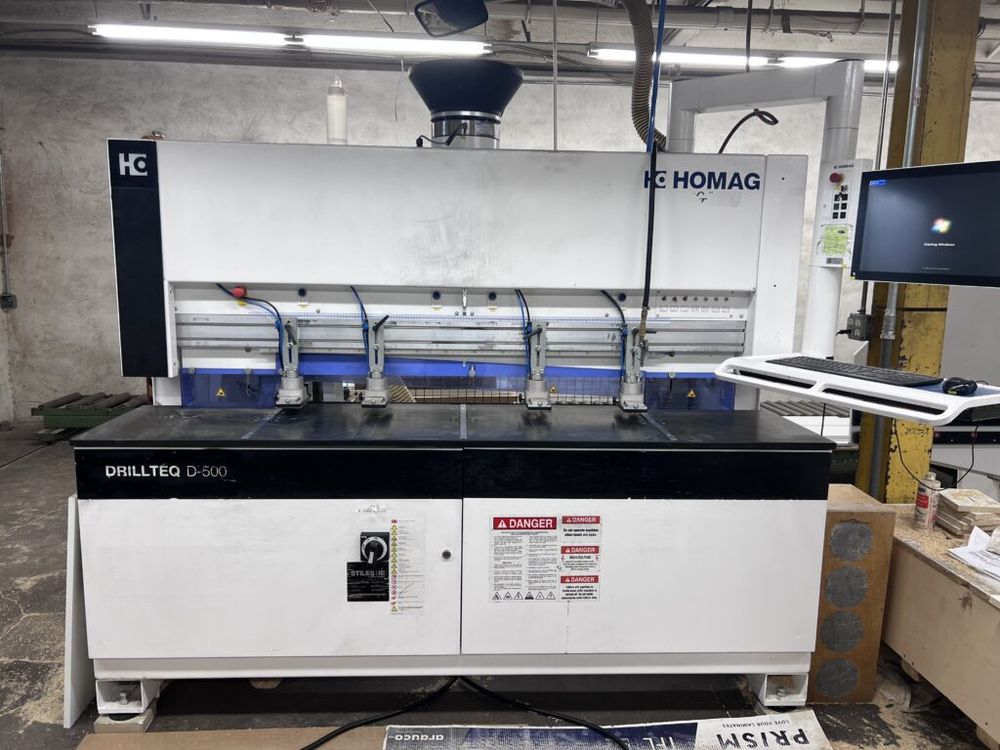

Homag Drillteq D-500

Drill/Dowel Insertion
General features:
Maintenance-free motors with high-resolution optical encoders provide precision and accuracy.
Digital drive control units guarantee high reliability.
Solid steel frame construction
SorbTech Main Beam
Heavy Phenolic table surface
CNC Positioning of the X, Y, and Z axes
Digital AC servo motors
Ball-screw drives in the Y- and Z-directions, and rack and pinion drive in the X-direction
Automatic central oil lubrication of the pinion rod in the X-direction, as well as the linear guide-carriages of the X-, Y-, and Z-axes
Side stops and central stop pneumatically lowerable with manual control by selection switch

Equipment:
1 vertical and 1 horizontal drilling aggregate, each with 3 individually-selectable spindles1 doweling tool: 32 mm distance from the drilling spindle
Glue injector with adjustable glue amount and cleaning device; engineered to spray glue as fast as water
Standard dowel dimensions: 8 x 30 mm / 8 x 35 mm
Vibrating hopper for automatic dowel feeding
