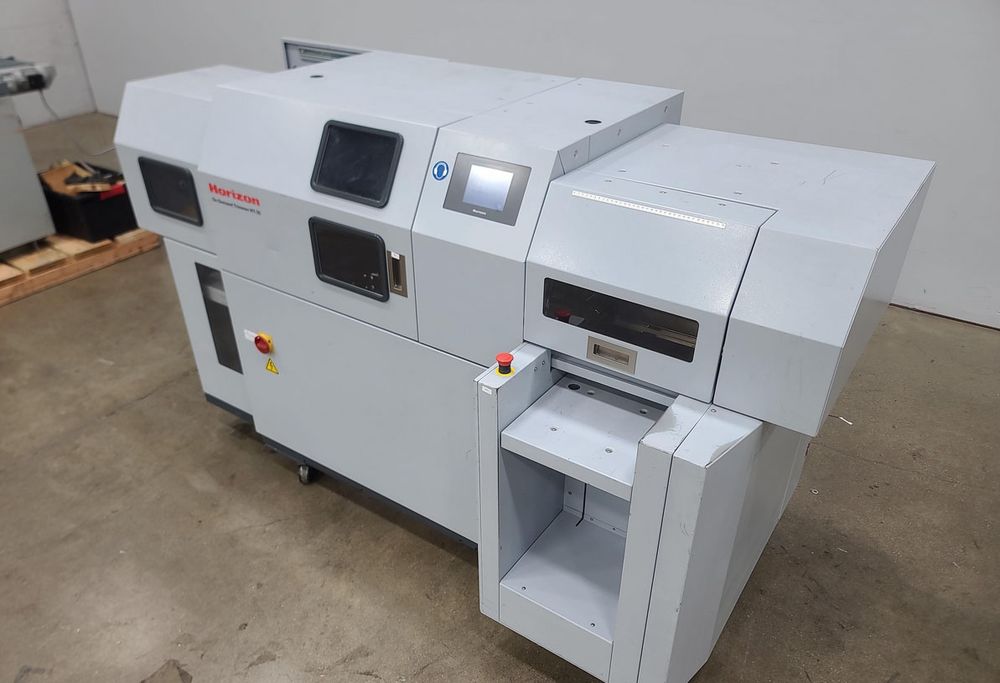

Horizon HT-30

Automatic Three Sided Trimmer
Features:
Automated robotic trimming with single knife for three-sided cuts and book rotation
Color touchscreen for easy input of untrimmed/trimmed sizes and full job automation
High-capacity in-feed hopper holding up to 12 inches of books for unattended feeding
Servo-controlled hydraulic clamping with automatic pressure adjustment to prevent marking
Up to 40 job memory slots with nonstop processing for varying book thicknesses
Precision servo motors for accurate knife positioning and professional-quality finishes
High-capacity stacker delivery with offset or jogged options
Optional pXnet integration for JDF job scheduling and barcode-driven setups

Specifications:
Untrimmed book size maximum: 320 x 235 x 51 mm (12.6 x 9.25 x 2 inches)
Untrimmed book size minimum: 152 x 136 x 1 mm (6 x 5.35 x 0.04 inches)
Trimmed book size maximum: 305 x 230 x 51 mm (12 x 9.05 x 2 inches)
Trimming width maximum: 100 mm (3.94 inches)
Trimming width minimum: 2 mm (0.08 inches)
Book pile height maximum: 300 mm (11.8 inches)
Production speed maximum: 400 books/hour (25 mm thick, 2 piled) or 500 books/hour (10 mm thick, 5 piled)
Clamp pressure: hydraulic, automatic 4/5.5/8 kN or manual 1.5-8 kN selectable
Power requirement: 220V / 1-phase / 50-60Hz
Machine weight: approximately 1,040 kg (2,292 lbs)
