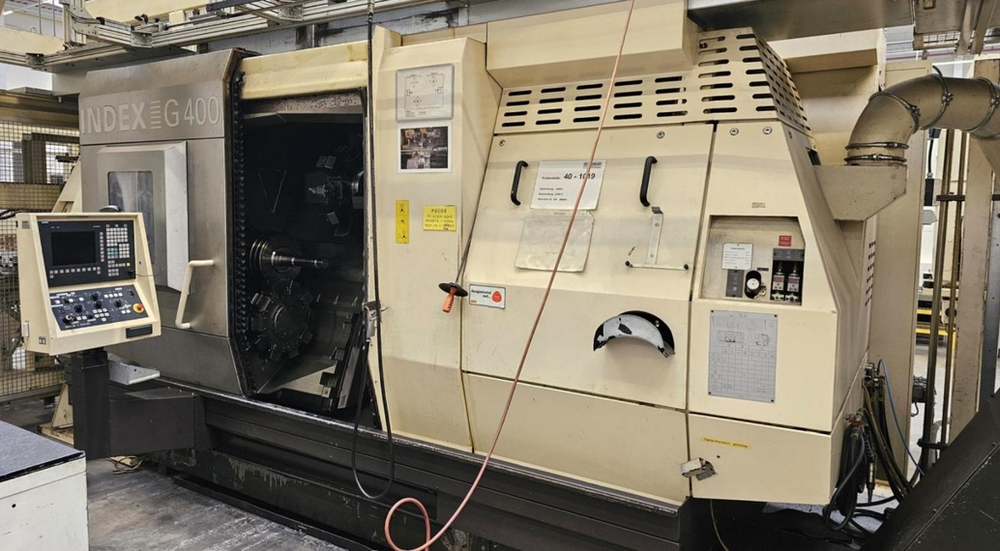

Index INDEX C 200-4 D 3000 rpm G 400 6 Axis

Travel X1: 320 mm
Travel Z1: 1250 mm
Travel X2: 170 mm
Travel Z2: 1250 mm
Travel X3: 320 mm
Travel Z3: 1250 mm
Travel sub spindle: 1250 mm

Control: INDEX C 200-4 D
Turning diameter max.: 420 mm
Turning length: 1250 mm
Swing diameter: 630 mm
Spindle passage: 102 mm
Sub spindle passage: 102 mm

Main spindle speed max.: 3000 rpm
Main spindle drive: 53 kW
Spindle head: DIN 55026 size 11
Max. spindle torque: 675 Nm

Sub spindle speed max.: 3000 rpm
Sub spindle drive: 53 kW
Sub spindle head: DIN 55026 size 11
Sub spindle torque: 675 Nm

Driven tool speed max.: 6000 rpm
Driven tool torque: 36 / 21 / 36 Nm

Feed power X1: 14000 N
Feed power Z1: 14000 N
Rapid traverse X1: 20 m/min
Rapid traverse Z1: 40 m/min
Feed power X2: 8600 N
Feed power Z2: 14000 N
Rapid traverse X2: 20 m/min
Rapid traverse Z2: 40 m/min
Feed power X3: 14000 N
Feed power Z3: 14000 N
Rapid traverse X3: 20 m/min
Rapid traverse Z3: 40 m/min

Turret positions Rev.1: 12
Turret positions Rev.2: 10
Turret positions Rev.3: 12
Driven tool stations: 12 / 10 / 12
Tool taper: DIN 69880
Tool size: 40 x 63 mm

Total power requirement: 120 kW
Machine weight: 19000 kg
Machine dimensions (L x W x H): 5.77 x 2.47 x 2.62 m

Segment bushing chuck on main spindle
Collet chuck on sub spindle
Various tool holders
Tool holders for driven tools
Chip conveyor
Coolant system
All 3 turrets prepared for through-spindle coolant
