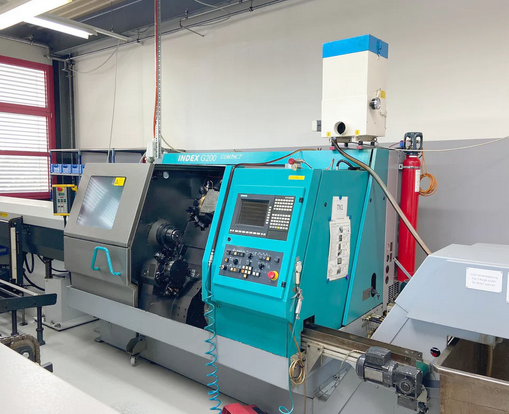

Index SIEMENS SINUMERIK C 6,000 RPM G 200 COMPACT CNC Turning-Milling-Drilling Center 2 Axis

Control: SIEMENS SINUMERIK C
Number of Spindles: 2
Number of Turrets: 2

Maximum Turning Diameter: 200 mm
Maximum Turning Length: 400 mm
Spindle Bore: 65 mm

Turret Configuration:
Turret 1: 14 Positions (14 Driven Tools)
Turret 2: 14 Positions (14 Driven Tools)
Indexing Time: 0.4 sec
Driven Tool Power: 5.5 kW

Upper Turret Travels:
X Axis: 155 mm
Y Axis: 120 mm
Z Axis: 400 mm

Lower Turret Travels:
X Axis: 105 mm
Z Axis: 400 mm

Main Spindle:
Spindle Bore: 60 mm
Taper: HEINBUCH BZI 65
Max Speed: 6,000 RPM

Back Spindle:
Spindle Bore: 60 mm
Spindle Diameter: 160 mm
Taper: F66
Stroke: 445 mm
Max Speed: 6,000 RPM

Rapid Traverse:
X Axis: 23 m/min
Y Axis: 8 m/min
Z Axis: 45 m/min

Electrical: 400V / 3 Phase / 50 Hz
Power Requirement: 40 kW

Machine Dimensions: 2,500 x 2,000 x 2,200 mm
Machine Weight: 4,280 kg

Accessories:
Set of Collets
Lamp
Oil Mist Extractor
LNS HYDROBAR SPRINT Bar Feeder (Max Bar Length 3,200 mm)
RS-232 Interface
Workpiece Conveyor
Chip Conveyor
Foot Pedal
Steel Holders
Toolholders
Fire Extinguishing System
Rotating Viewing Window
