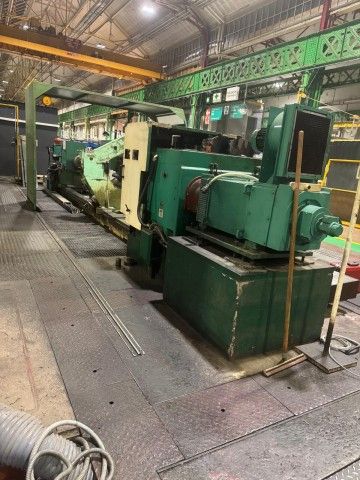

Innse NUM 750 600 RPM TPFF 120-02-02 2 Axis
Ref :
2778442-3-GO
Condition :
Used
Manufacturer :
Innse
Controller :
NUM 750
Spindle Speed :
600 RPM
Model :
TPFF 120-02-02
Nb Of Axis :
2 Axis
Year(s) :
1987
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 5000 mm
Control: NUM 750
Faceplate diameter: 750 mm
Swing over bed: 1260 mm
Swing over saddle: 1200 mm
Centers height over bed: 700 mm
Maximum load capacity between centers: 10 t
Bed width: 1250 mm
Number of slideways: 3 + 1
Spindle motor power: 82 kW
Spindle speed: 2.5 - 600 RPM
Gears numbers: 2
Quill diameter: 200 mm
Quill travel: 260 mm
Turret positions: 6 for turning
Turret positions: 2 for milling
Milling spindle nose taper: ISO 50
Milling spindle motor power: 18.3 kW
Milling spindle speed: 30 - 1600 RPM
Accessories: Grinding device with motor power 4 kW, grinding diameter 700 mm
