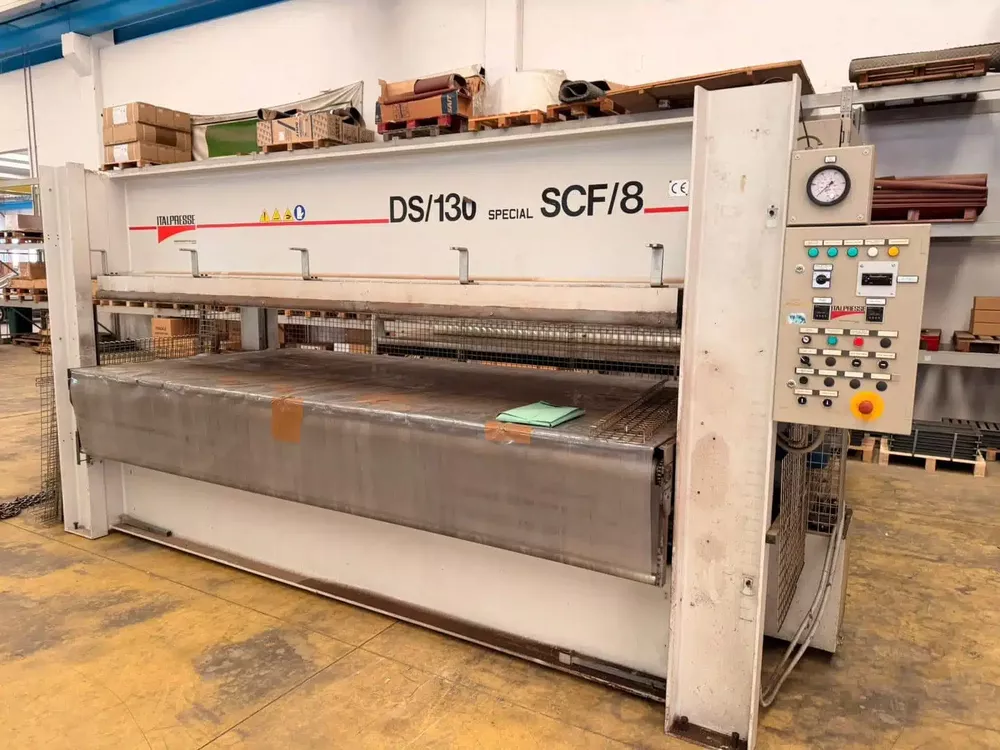

Italpresse DS/130 Special SCF/8

Automatic press
A- Composition and loading belt with synthetic material belt reinforced with nylon fabric *
Translation speed - Control with gearmotor group mt/l' 15 Kw. 0.37 \
Panel translation synchronized with the transport belt in the press
Photocell for load control B- Press in the "SCF/8" model
DumeTO plans - number of compartments - cylinder stroke and compartment light mm. 400 - assembled steel plates
Movement of the plates from bottom to top - heating of the plates with DIATHERMIC OIL WITH ELECTRIC BOYLER
Complete with pump, special hydraulic system, first filling with diathermic oil - use selector 50% boiler power KW. 27 - temperature degrees 120 C.
Total thrust - thrust cylinders tonn. 160 nr.
n 8 - power of the hydraulic group kw. 3
Adjustable pressure control gauge - automatic pressure reset
Automatic opening of the moving platen by means of an adjustable timer
Self-lubricating guides to control the flatness of the moving platen, positioned diagonally C- loading
and unloading group inside the press D- unloading table with idle rollers placed on the loading belt,
equipped with two pneumatic cylinders that lift the unloader
