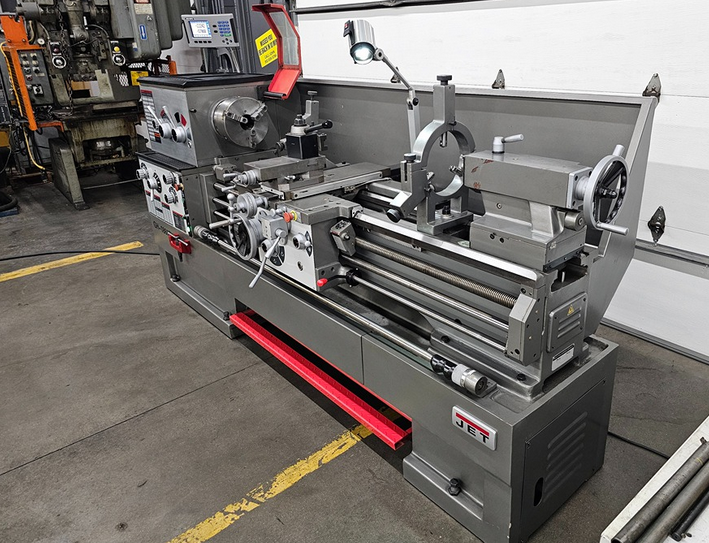

Jet Engine Lathe 1,800 RPM GH-1880ZX

Size: 18” x 80”
Spindle Bore: 3-1/8”
Swing Over Bed: 18”
Distance Between Centers: 80”
Swing Over Cross Slide: 11”
Swing Through Gap: 27-1/2”
Tailstock Spindle Travel: 5”
Carriage Travel: 74-5/16”
Compound Slide Travel: 5-1/8”
Cross Slide Travel: 9”
Drive: Geared Head
Length of Gap: 12”
Max Tool Size: 1” x 1”
Motor Power: 7-1/2 HP, 230, 3 Ph
Number of Inch Threads: 61
Number of Longitudinal and Cross Feed Rates: 46/31
Number of Metric Threads: 24
Number of Spindle Speeds: 12
Range of Cross Feeds (IPR): .0006 – .0360
Range of Inch Threads (TPI): 1-5/8 – 72
Range of Longitudinal Feeds (IPR): .0015 – .0900
Range of Metric Threads: .05 – 20
Spindle Speed Range: 25 – 1,800 RPM
Spindle Mount: D1-8
Spindle Taper with Sleeve: MT-7 (MT-5)
Steady Rest Capacity: 7-3/4”
Tailstock Spindle Taper: MT-5
Width of Bed: 13-1/8”
Gross Weight: 6790
Overall Dimensions (L x W x H): 136” x 44” x 66”

Taper Attachment
2 Axis Acu-Rite DRO
Steady Rest
Follow Rest
Manuals
Work Light
Coolant Pump & Tank
3 Jaw Chuck
4 Jaw Chuck
Face Plate
Quick Change Tool Post
5 Quick Change Tool Holders
Live Center
2 Boring Bars
