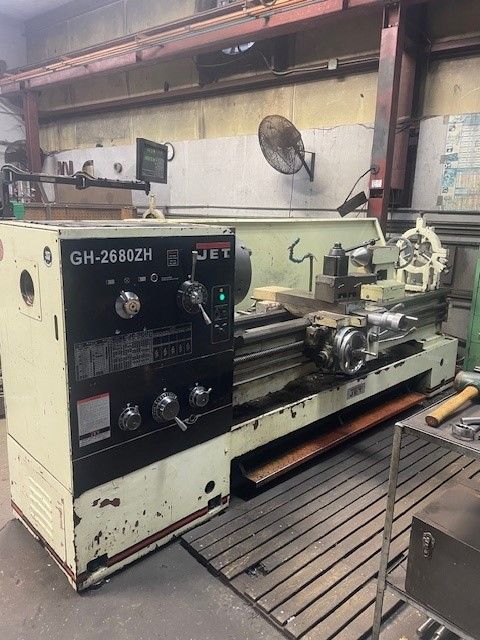

Jet Engine Lathe 1600 rpm GH2680ZH

Swing over bed 26 in
Swing in removable gap 34 in
Swing over cross slide 16.5 in
Distance between centers 80 in
Spindle hole 4.125 in
Spindle nose D1-8
Width of bed 16 in
Spindle speeds (12) 36–1600 rpm
Feed changes, longitudinal (65) 0.0023–0.0937 IPR
Feed changes, cross (122) 0.0010–0.0404 IPR
Threads, inch (61) 2–30 TPI
Threads, metric (24) 1–14 mm
Tailstock spindle center Morse Taper #5
Tailstock spindle travel 6 in
Machine dimensions 138 × 43 × 57 in
Machine weight 8500 lbs
Spindle motor 10 HP

Equipment:
Newall two-axis digital readout
Removable gap bed
Inch and metric threading capability
Hardened and ground bed ways
Taper turning attachment
3-jaw chuck
Quick change toolpost with holders
2 steady rests
Threading dial
Live center for tailstock
Foot brake
Coolant system with rear splash guard
