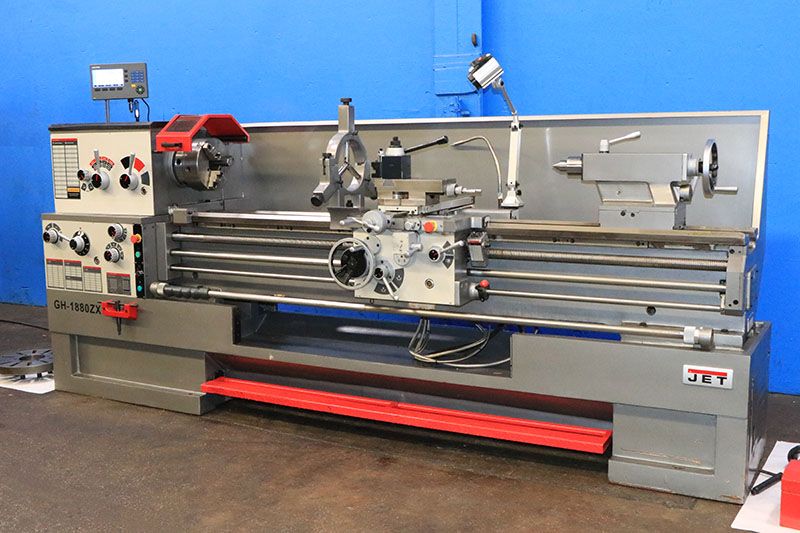

Jet Engine Lathe 1,800 RPM GH1880ZX

Swing Over Bed 18"
Swing Over Gap 27"
Swing Over Cross Slide 11"
Distance Between Centers 80"
Spindle Hole 3-1/8"
Spindle Nose D1-8"
Width of Bed 13-1/8"
Spindle Speeds 25 – 1,800 RPM
Feed Changes Longitudinal .0015 – .0913 IPR
Feed Changes Cross .0006 – .0365 IPR
Threads Inch 1-5/8 – 72 TPI
Threads Metric .5 – 20 mm
Tailstock Spindle Center #5 Morse Taper
Tailstock Spindle Travel 5"
Approximate Dimensions 136" x 44" x 66"
Approximate Weight 6,500 lbs
ACU-RITE Two Axis Digital Readout
Removable Gap Bed
Inch and Metric Threading Capability
Hardened and Ground Bed Ways
10" Three Jaw Chuck
Faceplate
Quick Change Toolpost
7-3/4" Capacity Roller Type Steady Rest
Follow Rest
Threading Dial
Center for Tailstock
Jacobs Drill Chuck for Tailstock
Foot Brake
Self-Contained Coolant System with Full Length Rear Splash Guard
7-1/2 Horse Power Spindle Drive Motor
