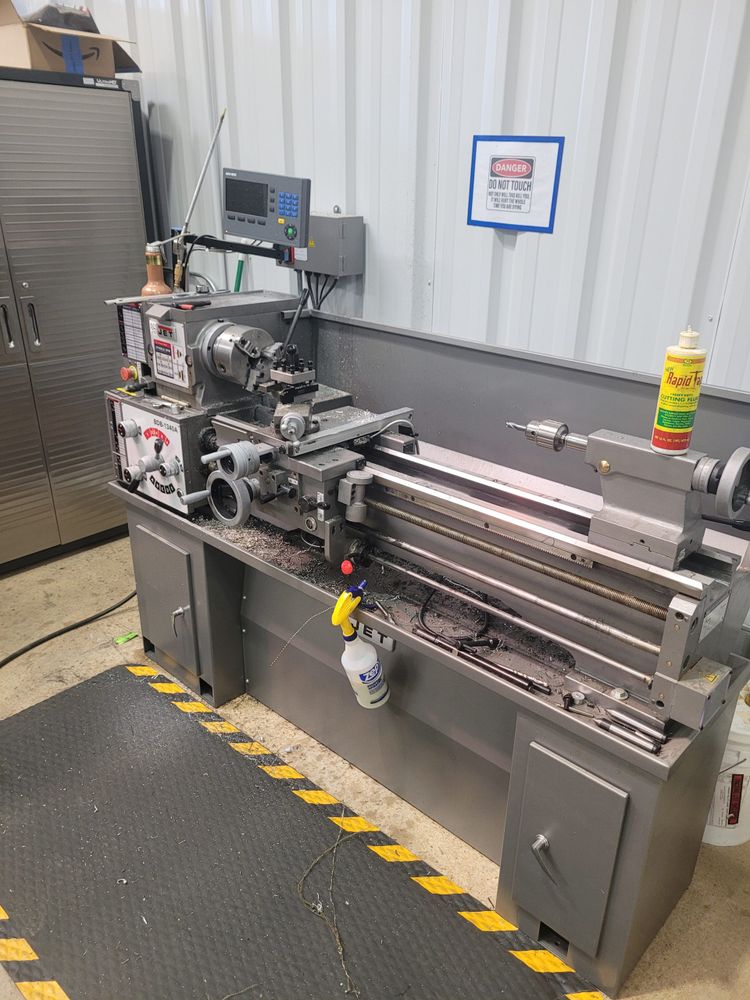

Jet Engine Lathe 1240 RPM BOB-1340A

Motor power 2 HP
Voltage 230 V
Phase single
Drive type belt with enclosed gearbox and helical gears
Swing over bed 13"
Swing over cross-slide 7-25/32"
Swing through gap 18-3/4"
Removable gap section 8"
Distance between centers 40"
Spindle bore 1-3/8"
Spindle mount D1-4
Spindle taper MT-5 with MT-3 sleeve
Spindle speeds 12 steps, 60–1240 RPM
Longitudinal feedrate 0.0018–0.0374 ipr
Cross-feedrate 0.0006–0.013 ipr
Inch threads 38, 3½–80 TPI
Metric threads 23, 0.45–10 mm pitch
Tailstock spindle travel 3-3/4"
Tailstock taper MT-3
Compound slide travel 2-11/16"
Cross-slide travel 6-5/16"
Carriage travel 35"
Steady rest capacity 2-5/8"
Follow rest capacity 2-3/4"
Tool post capacity 5/8" x 5/8" tool bit
Machine dimensions 71" x 32" x 45"
Machine weight 1,175 lbs
