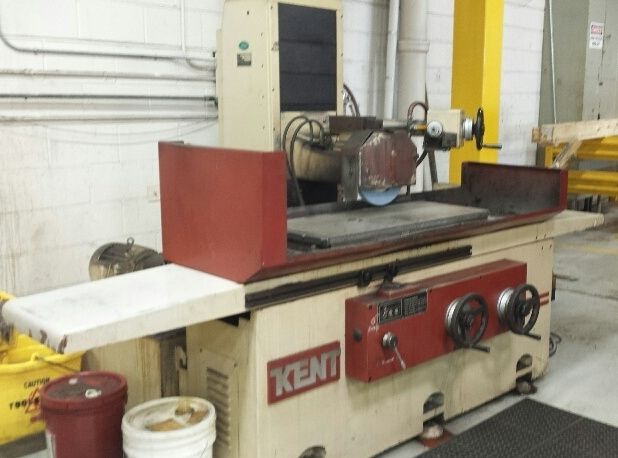

Kent KGS-410AHD, Flat grinding Machine

Ref : 1199088-3-GO
Condition : Used
Manufacturer : Kent
Model : KGS-410AHD, Flat grinding Machine
Year(s) : 1986
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 02 May. 2020

Brand: KENT
Model: KGS-410AHD
Year: 1986
Flat grinding Machine

Description:
used

Features/Specs
Working surface of table 41 3/4” x 16”
Maximum table travel 44 1/2” x 17 11/16”
Maximum longitudinal travel 43”
Maximum cross travel 16 1/2”
Maximum distance center of spindle to table 23 5/8”
Table speed 13 - 73 fpm
Power cross feed rates .02” - .5” (per table stroke)
Rapid cross feed rate 60 ipm
Cross feed hand feed per revolution / graduation .2” / 0.001”
Vertical elevation rapid rate 6 ipm
Vertical downfeed increments .0002” - .0016” (6 steps)
Vertical hand feed per revolution / graduation .02” / .0001”
Spindle motor 5 hp @ 1740 rpm
Grinding wheel size 12” x 1 1/2” x 5” bore
Hydraulic pump motor 3 hp
Machine dimensions 119” x 68” x 83” high
Weight 8,500 lbs.

Details
Machine equipped with coolant system with filter
automatic incremental down feed
w/ spark-out and finish grind pass counter
16” x 39 1/2” Kanetsu variable pull electromagnetic chuck
rapid positioning control
and auto lube system
