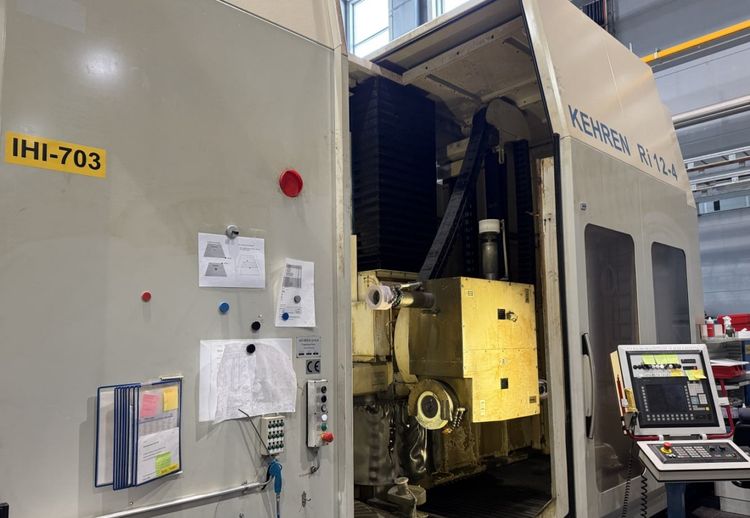

Kehren RI-12-4

Rotary Table Diameter: 1200 mm
Swing Diameter: 1500 mm
Internal Grinding Diameter: 1450 mm
Workpiece Weight: 3000 kg
X Axis Travel: 1900 mm
Z Axis Travel: 1200 mm
Feeds Z Axis: 0.01–10,000 mm/min
Feeds X Axis: 0.01–15,000 mm/min
B Axis Travel: 280°
Control: Siemens 840D
Machine Weight: 25 t
Machine Dimensions: 8.6 x 5.5 x 5.5 m

Features / Equipment
Spindle 1: Diameter 230 mm
Spindle 1: Speed 2000–12,000 rpm
Spindle 1: Grinding Height 820 mm
Spindle 1: Power 25 kW
Spindle 1: Tool Holder HSK-C80
Spindle 2: Diameter 140 mm
Spindle 2: Speed 1500–4500 rpm
Spindle 2: Grinding Height 700 mm
Spindle 2: Power 15 kW
Spindle 2: Tool Holder V56
Spindle 3: Diameter 140 mm
Spindle 3: Speed 1500–4500 rpm
Spindle 3: Grinding Height 700 mm
Spindle 3: Power 15 kW
Spindle 3: Tool Holder V56
Spindle 4: Diameter 140 mm
Spindle 4: Speed 1500–4500 rpm
Spindle 4: Grinding Height 1100 mm
Spindle 4: Power 15 kW
Spindle 4: Tool Holder V56
Workpiece Measurement
