Kitamura Bridgecenter 8 Plus 3 Axis

Ref : 2057356-3-AW
Condition : Used
Manufacturer : Kitamura
Model : Bridgecenter 8 Plus
Nb Of Axis : 3 Axis
Year(s) : 1999
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 21 Aug. 2019

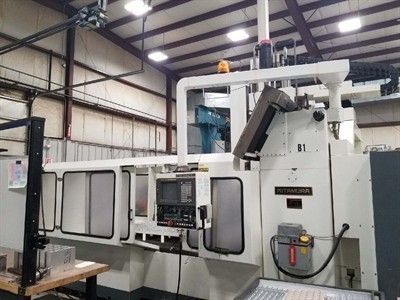

Kitamura Bridgecenter 8 Plus 1999

35.4” X 116.1” Table
7,700 Lb. Table Load Capacity
9.9” – 37.9” Spindle Nose To Table Top
49.05” Distance Between Columns
98.4” X-Axis Travel
42.7” Y-Axis Travel
28” Z-Axis Travel
CAT 50 Spindle Nose
6,000 RPM Spindle Speed
2 Gear Ranges
30 HP Main Motor
472, 472, 393 IPM Rapid Traverse Rates
.04 – 196.8 IPM Cutting Feed Rates
30 ATC Tool Magazine
6” Maximum Tool Diameter When Adjacent Empty
13.7” Maximum Tool Length
33 Lb. Maximum Tool Weight
Machine Weight: 37,400 Lbs.
Complete With 220 PSI Coolant Thru Spindle System, Chip Conveyor, Extended X-Axis Travel From 80" To 98.4", Fanuc 15MB CNC Control, Full Enclosure And Glass Scales On All Linear Axes.
