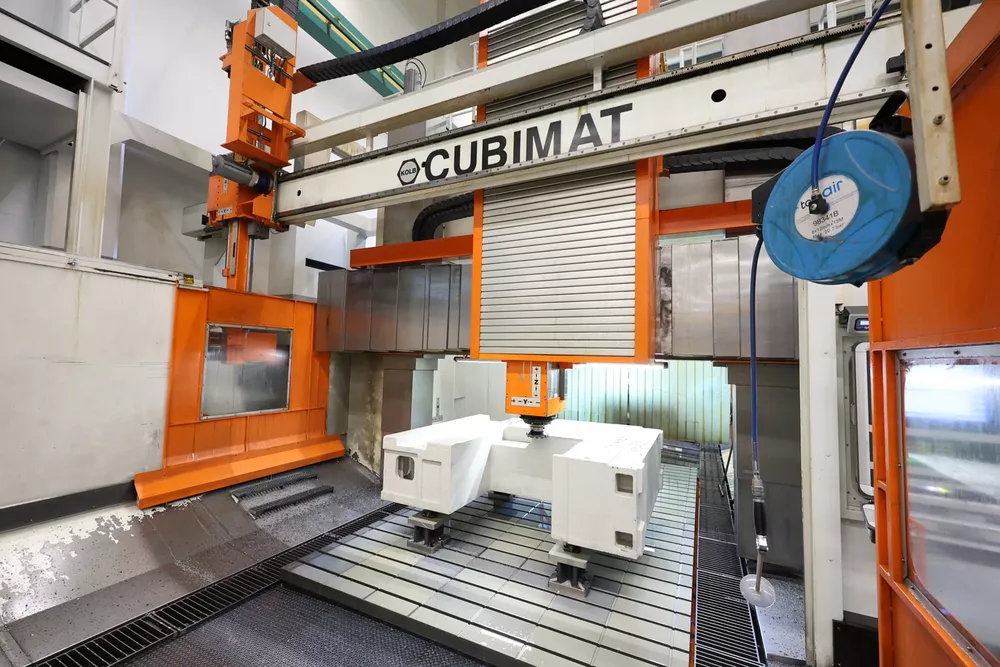

Kolb Cubimat VD 3000 5 Axis

Kolb Cubimat VD 3000
Year: Retrofit 2020

Control: Siemens 840 D
X-Axis Travel: 6500 / 13150 mm
Y-Axis Travel: 4000 mm
Z-Axis Travel: 1250 mm
W-Axis Travel: 2250 mm

Table Size: 5500 / 12150 x 3000 mm
Max Workpiece Weight: 70000 / 105000 kg
Ram Dimensions: 480 x 510 mm
Spindle Motor Power: 63 kW
Spindle Torque: 3300 Nm
Spindle Speed Range: 6.3 – 4000 rpm
Tool Holder: DIN 39871 AD ISO 50
Feed Speed: 1 – 24000 mm/min
W-Axis Feed Speed: 1 – 6000 mm/min
Clearance Between Columns: 3500 mm
Clearance Height: 3000 mm
Total Power Requirement: 120 kW
Machine Weight: approx. 245 t
Space Requirement: approx. 29.0 x 7.7 x 8.1 m

Automatic Tool Magazine for 153 Tool Positions
Automatic Milling Head Magazine for 6 Milling Heads
Machining Module Standard Angle 4000 rpm 144 x 2.5° ISO 50
Machining Module Narrow Extended Angle 40 kW 4000 rpm 1800 Nm 144 x 2.5° ISO 50
Machining Module Universal Index 40 kW 4000 rpm 2100 Nm C-Axis 144 x 2.5° B-Axis ±44 x 2.5°
