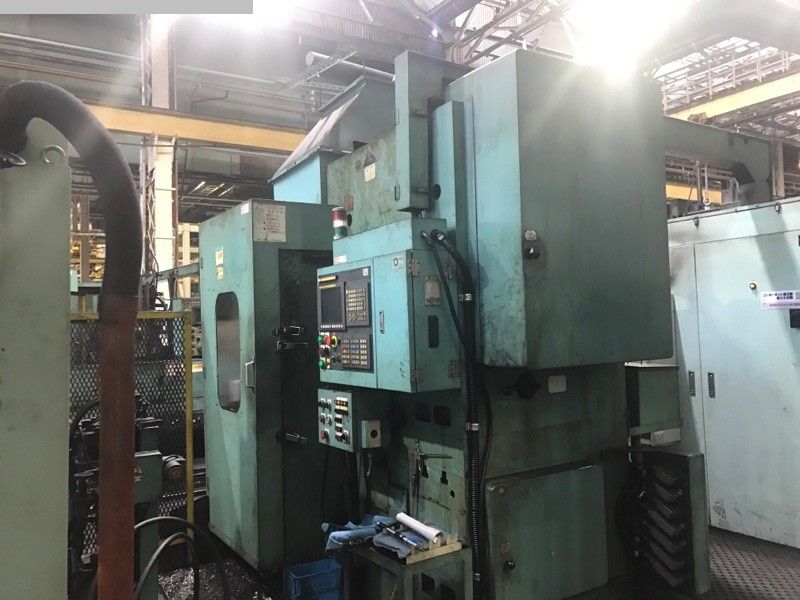

Lorenz LS 422 CNC Variable Speed Gear Shaping Machine

Ref : 2389456-3-W

Condition : Used

Manufacturer : Lorenz

Model : LS 422 CNC

Spindle Speed : Variable Speed

Short Description : Gear Shaping Machine

Year(s) : 1988

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Last check : 01 Sep. 2023

LORENZ LS 422 CNC
New in 1988/2007

Control Fanuc 0i-MC
max. wheel diameter 420 mm
gear width 120 mm
max. module 7
min. module 0,5
table diameter 400 mm
stroke length max. 0 - 115 mm
work-spindle diameter 100 mm
number of teeth 12 - 150
table hole 125 mm
max. ram stroke 125 mm
gear hobbing diameter - external 420 mm
gear hobbing diameter - internal 370 mm
Control Fanuc 0i-MC
total power requirement kW
weight of the machine ca. 9,5 t
dimensions of the machine ca. 3,6 x 3,2 x 3,1 m
Description
equipped with:
- CNC Control Fanuc 0i-MC and Fanuc Motors (new in 07/2007)
- Loading System for Workpieces

2 machines available
