MAE HY-S 63 RH 630 kN

Ref : 2523515-3-AW
Condition : Used
Manufacturer : MAE
Model : HY-S 63 RH
Pressure : 630 kN
Year(s) : 1998
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

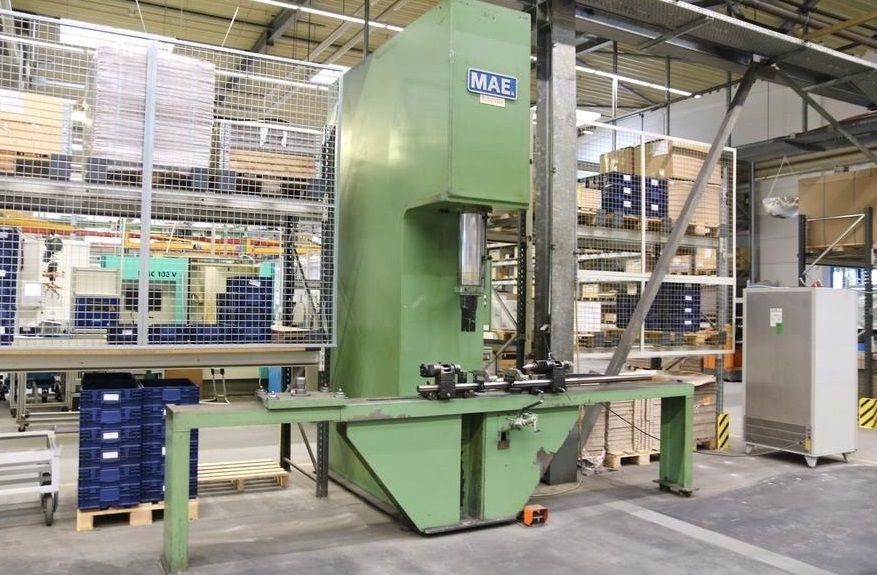

Straightening Press - Single Column
MAE HY-S 63 RH
Built 1998

throat 350 mm
stroke 800 mm
press capacity 630 kN
operating pressure 201 bar
feed down 10 mm/s
feed up 36 mm/s
dayligth 1.100 mm
table depth 280 mm
table width 2000 (+ 2x 1.150) mm
table height 900 mm
ram hole 65 mm
Capacity 18 l/min
tank capacity 600 l
total power requirement 9 kVA
weight of the machine ca. 6,5 t
dimensions of the machine ca. 5,0 x 3,5 x 3,7 m

Additional information
Hydraulic straightening press
MAE - HY-S 63 RH
