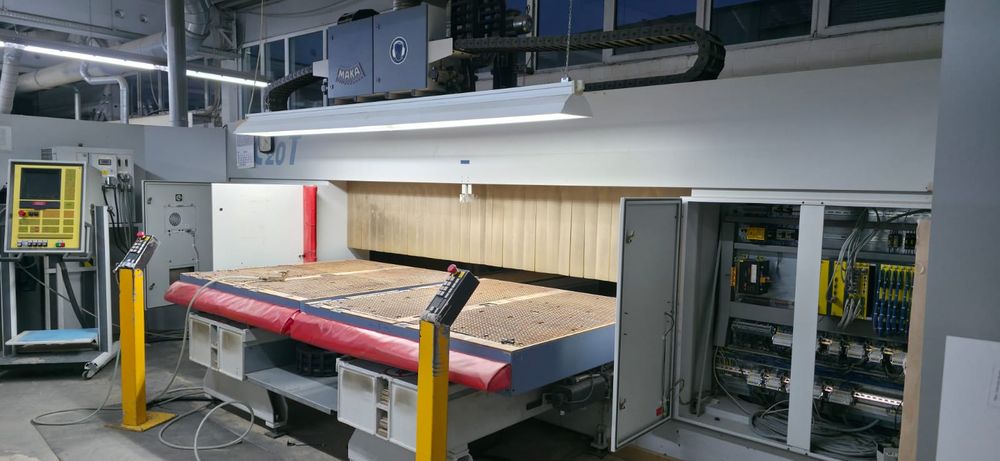

Maka SC 20 T 3-Axis

CNC Machining Center
Tandem Table Design
3-Axis Machining
Workpiece Cube Dimensions
Maximum Length 1500 mm
Maximum Width 1500 mm (per table)
Maximum Height 240 mm
Maximum Travels approx.
X 4300 mm x Y 2500 mm x Z 400 mm

- Milling Unit 2 ISO 40 Milling Motor
Water-cooled Maximum Power 8/11 kW
Tool Holder SK40

- Tool Magazine consisting of 2 chain tool changers
Number of positions 16 each
Tool Holder ISO 40
- Tandem Grid Table with extension stroke for safe loading
Workpiece clamping via vacuum
- CNC Control Type bwo 900C, 512 KB RAM, PC
- Operating Voltage 400V / 50 Hz
Installed Power Approx. 34 kW, 80A fuse connection

Operating pressure 6 bar
Includes tools and tool holders
Machine weight approx. 8000 kg
Delivered by low-loader, no overwidth
