1/1
Mapelli 35/170 35 T
Ref :
2803341-6-AS
Condition :
Used
Manufacturer :
Mapelli
Model :
35/170
Capacity :
35 T
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

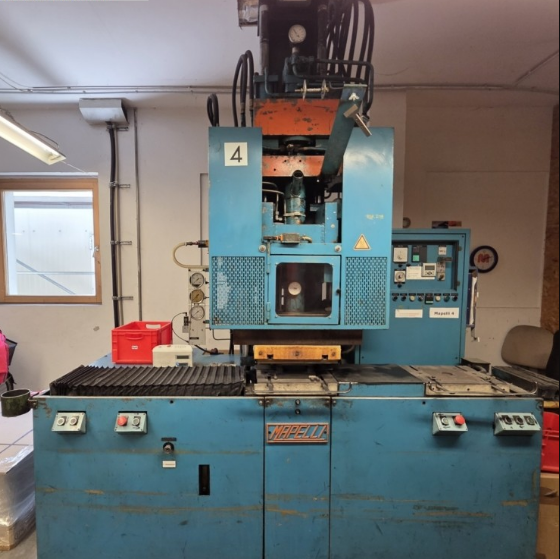

C-frame injection molding machine - used
Clamping unit:
- Clamping force: 350 kN
- Heating platen size: 380 x 300 mm
- Heating platen power: 6 kW
- Closing/opening stroke: 200 mm
- Clear width between plates: 250 mm
- Closing direction: from below
Injection unit:
- Pressure: 1,050 kg/cm2
- Maximum injection volume: 134 cm3
- Screw diameter: 35 mm
- Maximum screw speed: 30-110 rpm
- Metering stroke: 165 mm
- Injection: from above
- Voltage: 3x 400 V, 50 Hz, N, PE
- Pump drive power: 11 kW
- Hydraulic power: Motor: 10 kW
- Dimensions (L x W x H): 2,400 x 1,200 x 3,300 mm
- Weight approx.: 3,000 kg
