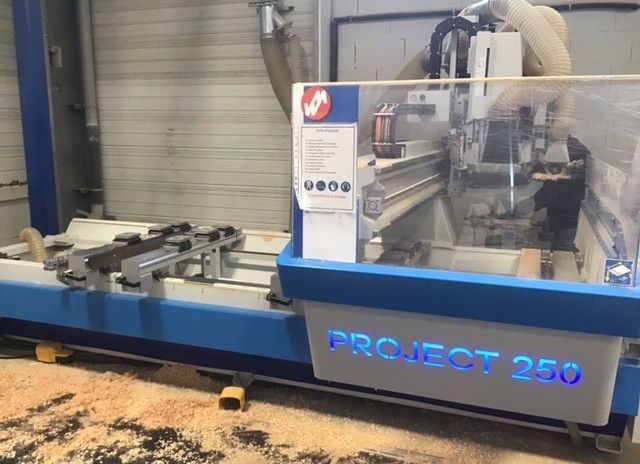

Masterwood PROJECT 250 3 AXES
EUROPE (Western and Northern)
CENTRE DE PERCAGE & FRAISAGE 3 AXES
MACHINE COMPOSITION :
3100*1250 capacity machining center
3-axis electro-spindle
Horizontal electrospindle unit - 2 ER25 outputs
Tool changer 10 tools - ISO30 attachments
Drilling head 19 chucks: 13V (7x-6y) - 6H (4x-2y)
1 creasing blade
1 vacuum pump 90m3/h
6 support bars
4 loading aids
18 suction cups (3 per bridge)
Floor protection mat
Protective grid
Remote control and PC
Masterworks software
OTHER CHARACTERISTICS:
Overall power supply: 400v. 50Hz
- Installed power: IN 48.8 A
- Electrospindle: 12 kW
- Suction
Suction mouths: Ø 250mm
Dimensions for transport: to be specified when preparing the equipment
Weight 2500kg
