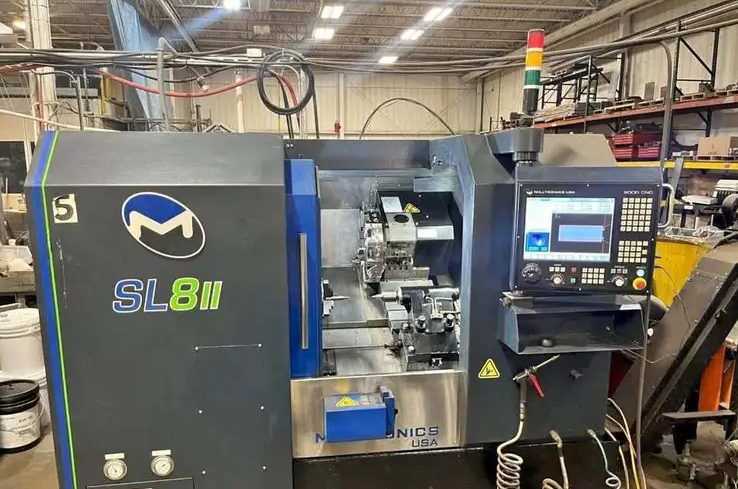

Milltronics Milltronics 9000 Series CNC Control 4000 rpm SL8-II 2 Axis

X-axis Travel: 8"
Z-axis Travel: 21"
Control: Milltronics 9000 Series CNC Control
Bar Capacity: 1.5"
Swing Over Bed: 21.7"
Swing Over Cross: 11.8"
Max Turning Diameter: 14"
Max Turning Length: 21"
Spindle Nose: A2-6
Spindle Bore Diameter: 3.07"
Draw Tube Inner Diameter: 2.54"
Spindle Speed: 0–4000 rpm
Spindle Motor Power: 22/15 hp
Chuck Size: 8"
Turret Tool Capacity: 12 Tool
Tool Size: 1" x 1"
Boring Bar Capacity: 1.5"
Tool Selection: Bi-directional
Turret Index Time: 0.6 sec
Tailstock Quill Travel: 3.46"
Tailstock Quill Diameter: 2.28"
Tailstock Quill Taper: MT4
Max Quill Thrust: 550 lbs
Tailstock: Yes
Rapid Traverse (X, Z): 1181 ipm
Max Cutting Feed Rate: 400 ipm
Machine Height: 83.7"
Floor Space (W x D): 169.1" x 104.4"
Machine Weight: 8885 lbs
Power Required: 17 kVA / 43 amps
Voltage: 208–234 volt, 3 phase
Condition: Used
Programmable Tailstock
Chip Conveyor
Parts Catcher
Linear Roller Guideways
Automatic Lubrication
Coolant System
15" Color LCD Display
Conversational Programming
ISO-Based G&M Code Programming
