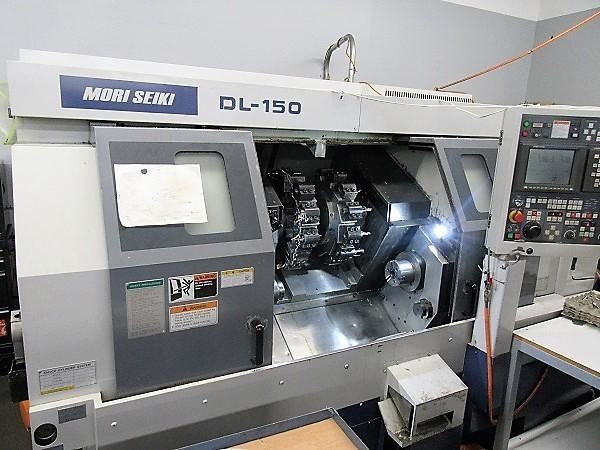

Mori Seiki Mitsubishi MSC-518L (18iTT) 5000 RPM DL-150 2 Axis

Ref : 2301813-3-MT
Condition : Used
Manufacturer : Mori Seiki
Controller : Mitsubishi MSC-518L (18iTT)
Spindle Speed : 5000 RPM
Model : DL-150
Nb Of Axis : 2 Axis
Year(s) : 1998
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Mori-Seiki DL-150 Mitsubishi MSC-518L (18iTT)
1998

Capacity x 2: Maximum Swing / Distance Between Spindles 11.02" / 38.78"
Maximum Turning Diameter / Maximum Turning Length 7.8" / 7.8"
Headstock 1: Spindle Speeds 50 - 5,000 RPM
Spindle Bore / Bar Cap / Spindle Nose 2.2" / 1.7" / A2-5
Motor (30 min / continuous) 10 / 7.5 HP
Headstock 2: Spindle Speeds 50 - 5,000 RPM
Spindle Bore / Bar Cap / Spindle Nose 2.2" / 1.7" / A2-5
Motor (30 min / continuous) 10 / 7.5 HP
Turrets x 2: Number of Positions (each) / (indexing time - Step / Full) 12 Sta. / .25 / .75 Sec.
Travels: X-Axis Travel (turret 1 / turret 2) 9.3" / 9.3"
Z-Axis Travel ( turret 1 / turret 2) 9.8" / 9.8"
C-Indexing 360,000°
Rotary Tools: Rotary Tool Speed 35 - 3,000 RPM
Rotary Tool Motor (30 min. / continuous) 3.1 / 2 HP
Rapids: Rapid Traverse (X1, X2 / Z1 - Z2) 709 / 945 - 1,181 IPM
Dimensions: Floor Space 117" X 98" X 80"
Weight (approx) 15,000 Lbs

Equipped With
Additional Info.: Collet Chuck on Main and 6" 3-Jaw Hydraulic on Sub-Spindles
Tool-Eye Ready
Chip Conveyor
RS-232 Port
