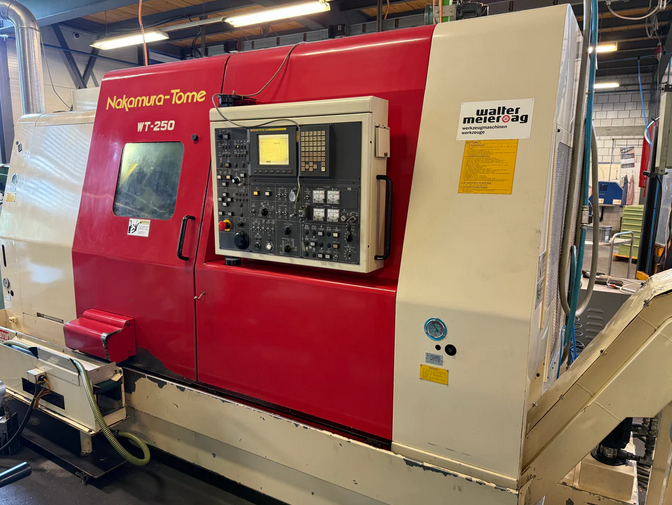

Nakamura Tome FANUC 18i-T 3600 rpm WT 250 4 Axis

X-axis travel: 195 mm
Y-axis travel: ±41 mm
Z-axis travel: 600 mm
C-axis resolution: 0.001°

Control: FANUC 18i-T
Number of axes: 7
Number of spindles: 2
Number of turrets: 2
Number of turret positions (each): 12
Bar passage: 65 mm
Maximum turning diameter: 250 mm
Maximum turning length: 555 mm
Spindle speed range: 20–4500 rpm
Spindle speed (nominal): 3600 rpm
Spindle power: 18.5 / 15 kW
Spindle nose: A2-6
Back spindle speed: 5000 rpm
Back spindle power: 11 / 7.5 kW
Back spindle nose: A2-5
Voltage: 3×400 V, 50 Hz
Machine weight: 6500 kg
Machine dimensions: 3500 mm × 3000 mm × 2200 mm
3-jaw chuck: Yes
Set of soft jaws: Yes
Set of hard jaws: Yes
Set of collets: Yes
Coolant system: Yes
Bar feeder: Hydro-Sameca
Workpiece conveyor: Yes
Chip conveyor: Yes
Set of toolholders: Yes
