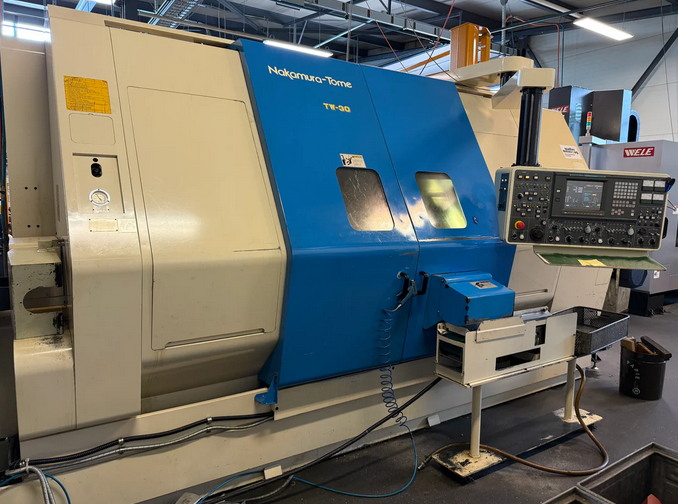

Nakamura Tome FANUC 18TC 3600 rpm TW-30 2 Axis

Ref : 2752971-3-MT

Condition : Used

Manufacturer : Nakamura Tome

Controller : FANUC 18TC

Spindle Speed : 3600 rpm

Model : TW-30

Nb Of Axis : 2 Axis

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Z-axis travel: 350 / 980 mm
X-axis travel: 265 / 265 mm
Control: FANUC 18TC
Number of axes: 6
Number of turning spindles: 2
Number of turrets: 2
Number of driven tools per turret: 12
Distance between spindle noses: 1300 mm
Maximum turning diameter: 335 mm
Maximum turning length: 300 mm
Spindle bore: 71 mm
Spindle speed: 3500 / 3600 rpm
Spindle power: 2 × 22 kW
Voltage: 3×400 V, 50 Hz
Chuck diameter: 254 mm
Machine weight: 10800 kg
Machine dimensions (L×W×H): 4975 × 2600 × 2250 mm
Set of collets: Yes
Coolant system: Yes
Bar feeder: LNS Hydrobar Sprint
Workpiece conveyor: Yes
Chip conveyor: Yes
Set of toolholders: Yes
