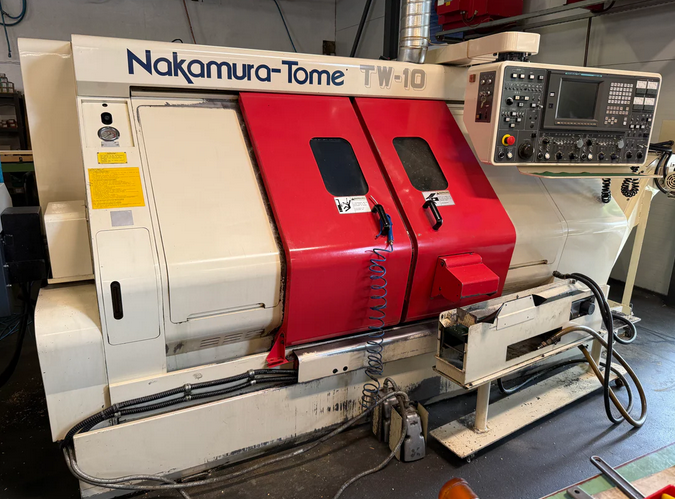

Nakamura Tome FANUC 18TC 5500 rpm TW-10 3 Axis

Ref : 2752969-3-MT

Condition : Used

Manufacturer : Nakamura Tome

Controller : FANUC 18TC

Spindle Speed : 5500 rpm

Model : TW-10

Nb Of Axis : 3 Axis

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 180 mm
Y-axis travel: ±30 mm
Z-axis travel (carriage 1): 200 mm
Z-axis travel (carriage 2): 620 mm
Control: FANUC 18TC
Number of spindles: 2
Number of turrets: 2
Number of turret positions (each): 12
Driven tools per turret: 6
Spindle-nose distance: 250–870 mm
Maximum turning diameter: 130 mm
Maximum turning length: 160 mm
Spindle speed range: up to 5500 rpm
Spindle power: 7.5 kW
Spindle bore: 42 mm
Back spindle bore: 40 mm
Back spindle speed: 5000 rpm
Back spindle power: 5.5 kW
Voltage: 3×400 V, 50 Hz
3-jaw chuck: Yes
Set of collets: Yes
Coolant system: Yes
Bar feeder: LNS Hydrobar Mini-Sprint
Chip conveyor: Yes
Set of toolholders: Yes
