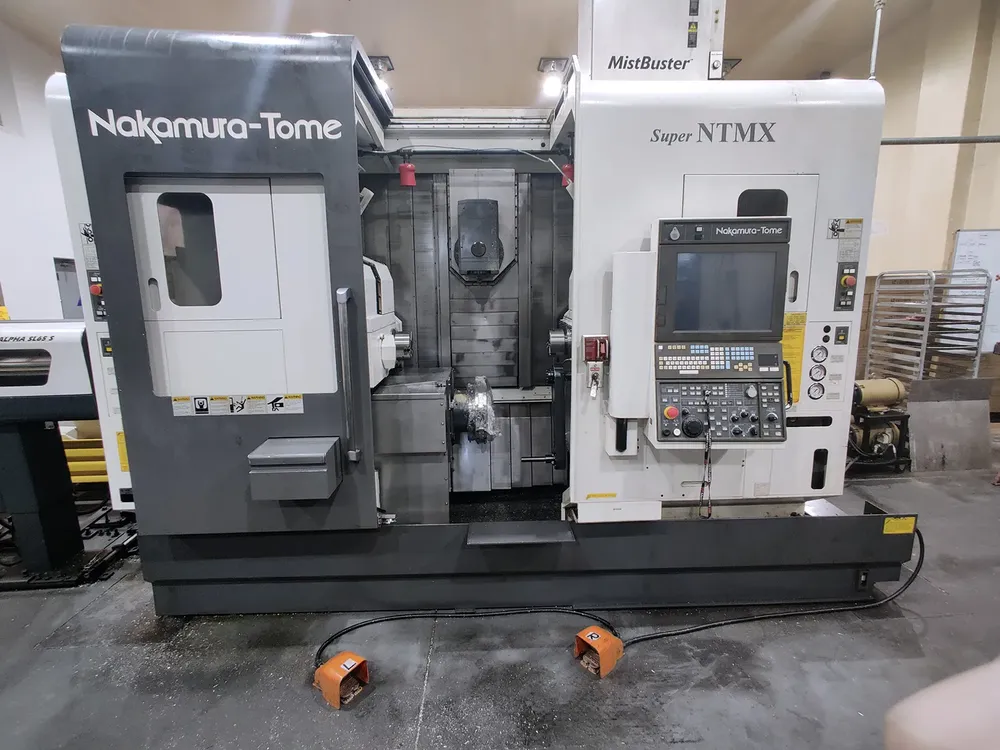

Nakamura Tome Fanuc 31i-A5 2-path CNC control 5000 rpm SUPER NTMX 5 Axis

X-axis travel 22.44 in
Y-axis travel Yes
Y-axis travel range ±3.93 in (7.87 in total)
Z-axis travel 51.1 in
C-axis (upper/lower) included
B-axis included
9 controlled axes
5-axis simultaneous machining (upper X1 Z1 C1[C2] Y B1)
4-axis lower configuration (X2 Z2 C2[C1] B2)
Fanuc 31i-A5 2-path CNC control
Swing over cross slide 8.07 in
Max cutting diameter 7.87 in
Max cutting length 30 in
Distance between centers 38.58 in
Chuck size 7 in
Bar capacity 2 in
Spindle nose A2-5
Spindle motor 15 hp
Spindle speed 5000 rpm
Sub spindle included
Sub spindle chuck size 7 in
48 ATC tool capacity (24 upper / 24 lower)
LNS Alpha SL65-S bar feeder (2014)
Through-spindle coolant
High-pressure coolant 1000 psi
Renishaw NC4 laser tool setter (upper tools)
SRP3 tool presetter (lower tools)
Part conveyor
Parts catcher
Spindle chiller
Mist collector
