Nakamura Tome FANUC 31i-B5 CNC Color Control 5,000 RPM WY-250L Super Mill 8 Axis

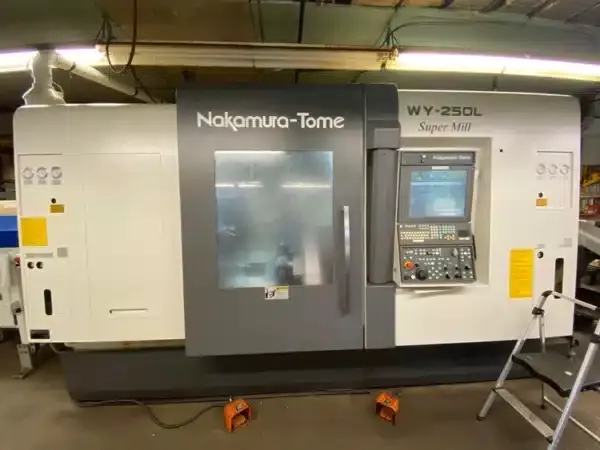

NAKAMURA-TOME WY-250L Super Mill
Year: 2014

Turning Diameter: 8.8″
Turning Length: 35.8″
Distance Between Spindles: 47.2″
Spindle Nose 1: A2-6
Spindle Nose 2: A2-5
Spindle Bore Diameter 1: 3.15″
Bar Capacity 1: 2.6″
Spindle Speed 1: 4,500 RPM
Spindle Horsepower 1: 25 HP
Spindle Bore Diameter 2: 2.48″
Bar Capacity 2: 2.04″
Spindle Speed 2: 5,000 RPM
Spindle Horsepower 2: 20 HP

X1-Axis Travel: 6.3″
X2-Axis Travel: 6.3″
Z1-Axis Travel: 35.8″
Z2-Axis Travel: 35.8″
Y1-Axis Travel: 2.75″
Y2-Axis Travel: -1.96″
C-Axis Indexing 1: 0.001°
C-Axis Indexing 2: 0.001°
W-Axis Travel (Sub-Spindle): 37.2″

Rapid Traverse X1: 708 IPM
Rapid Traverse X2: 708 IPM
Rapid Traverse Z1: 1,574 IPM
Rapid Traverse Z2: 1,574 IPM
Rapid Traverse Y1: 393 IPM
Rapid Traverse Y2: 393 IPM

Turret Tool Positions 1: 24
Turret Rotary Tool Speed 1: 6,000 RPM
Turret Rotary Tool Horsepower 1: 10 HP
Turret Tool Positions 2: 24
Turret Rotary Tool Speed 2: 6,000 RPM
Turret Rotary Tool Horsepower 2: 10 HP
Machine Weight: 28,661 lb
Control: CNC
Control Type: FANUC 31i-B 2-Path Color Control
Dimensions: 211″ × 132″ × 95″

FANUC 31i-B5 CNC Color Control
IEMCA Barfeed
AI Contour Control
Chip Conveyor
Tool Presetter
Manual Guide i Multi Path
Pitch Error Compensation
Graphic Function
Registered Programs Expansion
Y-Axis Offset
Tool Geometry/Wear Offset
Tool Offset 200 Pairs
Arbitrary Angular Axis Control
Chamfering/Corner Breaking
Custom Macro B
Direct Drawing Dimension
Constant Surface Speed Control
Thread Cutting Retract
Embedded Ethernet
Spindle Polygon Function
Unexpected Disturbance Detection Function
Balance Cutting
Variable Lead Thread Cutting
