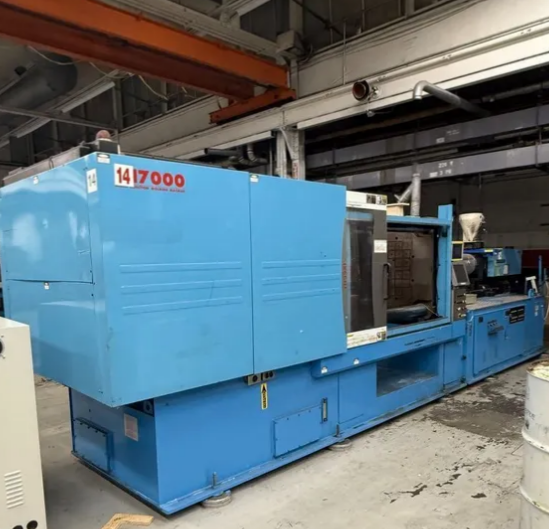

Nissei FN7000-100A 398 T

Type Servo Hydraulic
Clamping Force Tonnage 398 t
Barrel Code A
Shot Volume (PS) 26.6 oz
Screw Diameter 2.5"
Maximum Injection Pressure 29790 psi
Maximum Holding Pressure 29790 psi
Injection Rate STD 16.1 in³/min.
Nozzle Touch Force 6.2 T
Tie Bar Distance H 28.9"
Tie Bar Distance V 28.9"
Platen Dimension H 41.5"
Platen Dimension V 41.5"
Clamp Stroke 38.2"
Maximum Daylight 52"
Ejector Force 12.2 T
Ejector Stroke 5.9"
Power supply Volts 460
Heater Capacity 28.38 kw
Injection Orientation Horz
Control CNC (TACT)
Dimensions 24.575 ft × 5.45 ft × 7.658 ft
NEW servo motor
