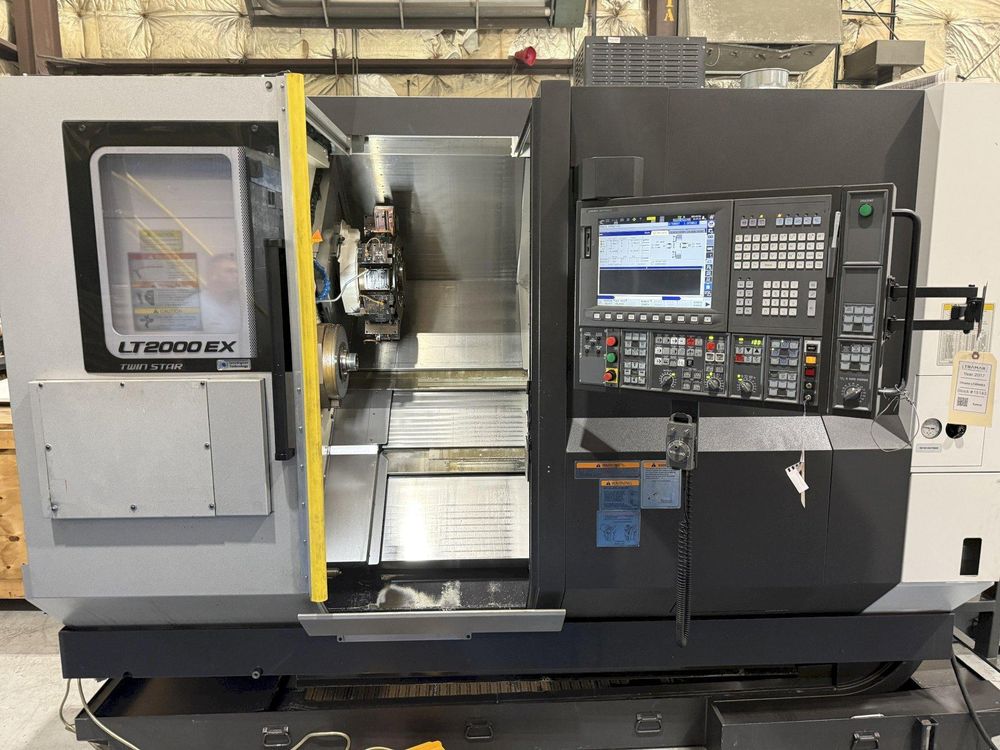

Okuma OSP-P300LA 6,000 rpm LT2000EX-MY 6 Axis

X axis travel 8.07 in
X2 axis travel 8.07 in
Y axis travel 3.74 in
Z axis travel 27.56 in
B axis travel (sub spindle) 28.74 in
C axis index 0.001°
Control type OSP-P300LA

Tool presetter
Sub spindle touch setter
High pressure coolant
Coolant tank & pumps
Synchronized tapping
Bar capacity 2.04 in
Swing 15.75 in
Turning diameter 8.28 in
Spindle speed 6,000 rpm
Spindle nose A2-6
Main motor 15 hp
Sub spindle included
Sub spindle speed 6,000 rpm
Sub spindle nose A2-6
Sub spindle motor 15 hp
Chuck size (main) 8 in
Chuck size (sub) 6 in
Live tooling included
Live tooling speed 6,000 rpm
Live tooling motor 7.5 hp
Y axis on upper turret
Turret capacity (upper/lower) 16 stations / 16 stations
Rapid traverse (X/Y/Z) 1,181 / 591 / 1,575 ipm
Parts catcher
Bar feeder interface
Transformer
Chip conveyor
Machine dimensions 135 × 98 × 94 in
Machine weight 19,800 lb
