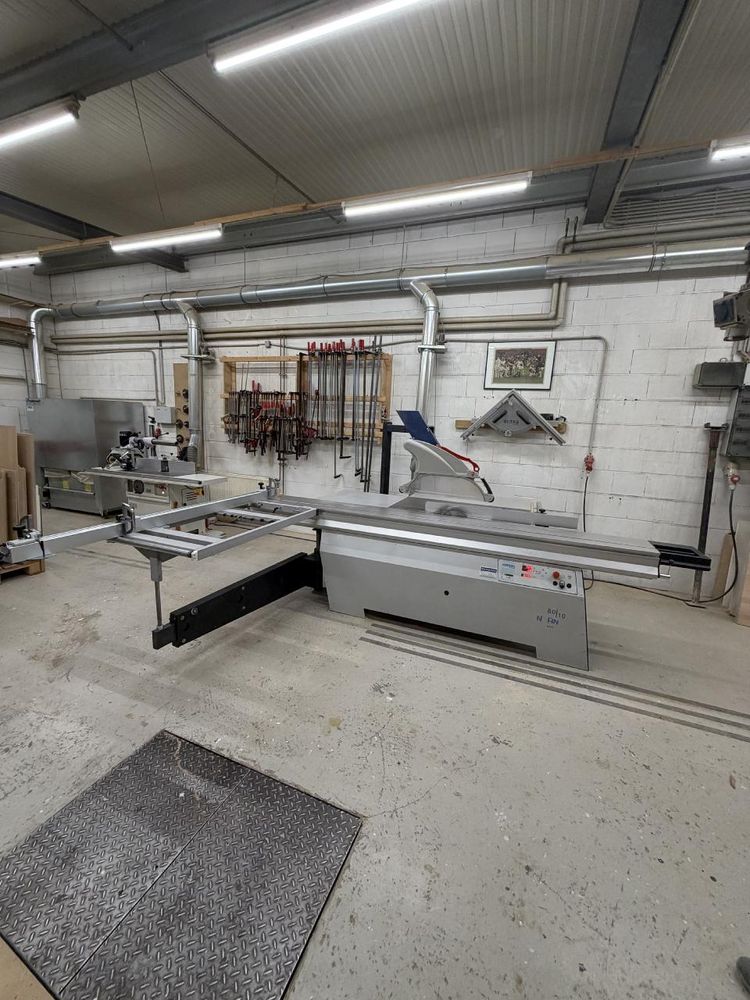

Panhans 680/10

Used machine
Condition: Currently still in production
> For trimming, cutting to length, sizing, miter cutting, etc.
> Dimensionally stable and self-supporting machine body manufactured as a robust
welded frame construction from thick-walled steel profiles, laser-cut sheet steel components, and machined components
> Mounted on the machine body is the torsionally rigid and finely planed cast iron table plate.
> The robust and powerful saw unit integrated into the machine stand guarantees precise saw cuts.
> The complete saw shaft assembly is dynamically balanced. Double-guided
swivel segments made of gray cast iron with double column guides for height adjustment,
as well as the long circular saw shaft supported by two ball bearings, ensure absolutely smooth operation.

> The double roller carriage is smooth-running and maintenance-free. Precise and backlash-free
running along the full length, guided by hardened and ground prism guides with remote locking in 80 mm increments
> Sturdy yet lightweight cross slide made of steel profiles with a support roller on the outer narrow side
> Length stop on the cross slide with mm scale and telescopic extension
extendable up to 3500 mm. With 2 robust and backlash-free sliding stop flaps, 1 end stop with support for long strips.
Length stop usable as an angle/miter stop on both sides, continuously adjustable from 0° to 50° with mechanical length compensation.
All common miter angles (15°, 22.5°, 30°, 45°) can be quickly set using a locking system.
> Width stop with a cutting width of 1030 mm to the right of the saw blade with fine adjustment,
easily adjustable and lockable manually, dimension display via an easy-to-read mm scale on an adjustable ruler support.

> Table extension 1200 x 600 mm and table extension 750 x 655 mm
> Controls on the machine body
> Electromotive height and tilt adjustment via pushbuttons
> Saw blade tilt range from 0 to 47°
> Digital displays for angle setting, cutting height, and speed
> APA quick-release saw blade system
> Main saw blade speed 3000/4000/5000/6000 rpm
> Guard swings out to both sides, guard hood with interchangeable wide/narrow insert for saw blades up to Ø 450 mm
> Pushbutton control with electronic soft start (start/stop)
> Electronic, wear-free motor brake

Technical description:
> Length stop on the crosscut slide extendable up to 3500 mm
> Saw blade Ø 400 mm can be retracted under the table
> Dust extraction port 120 mm on the machine body, 80 mm on the Protective hood
> Anodized trolley, length and width stop profile
> Machine body and swivel arm powder-coated anthracite RAL 7021
Covering panels available in 5 standard RAL colors

> Galvanized cross slide
> CE compliant, GS certified, BG wood dust tested

Cutting length 3450 mm, trolley length 3200 mm
Maximum cutting height 155 mm at 90°, 105 mm at 47°
Cutting width with width stop 1030 mm
Maximum saw blade diameter 450 mm
Table size cast iron table top 1200 x 655 mm
plus Table extension 750 x 655 mm
Table widening 1200 x 655 mm
Table height 900 mm
Motor power 5.5 kW (7.5 hp)
Voltage 400 V / 50 Hz
Space required 7110 x 3800 mm
Weight approx. 1050 kg

Includes optional equipment:
Double-sided miter gauge DSG A-S for angled cuts
Parallel fence to the left of the saw blade
Color: Gray
