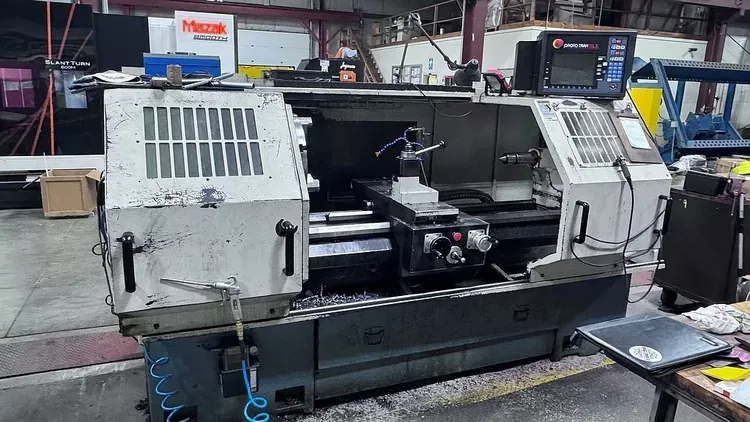

Prototrak ProtoTRAK SLX CNC with 10.4" color LCD 1,800 RPM TRL2460SX 2 Axis

X-Axis Travel: 12.5" (317.5 mm)
Distance Between Centers: 60" (1,524 mm)
Swing Over Bed: 24" (609.6 mm)
Swing Over Cross Slide: 14.5" (368.3 mm)
Control: ProtoTRAK SLX CNC with 10.4" color LCD
Manual Operation: 2-axis digital readout (DRO)
Servo Motors: AC brushless with ground ball screws
Bar Capacity: 3.937" (100 mm)
Spindle Bore: 4.09" (104.4 mm)
Spindle Speed Low Range: 40–670 RPM
Spindle Speed High Range: 100–1,800 RPM
Spindle Motor Power: 15 HP
Spindle Nose: D1-8 Camlock
Spindle Taper: MT#8 reducing to MT#5
Tailstock Quill Travel: 6.88" (174.8 mm)
Tailstock Quill Diameter: 3" (76.2 mm)
Tailstock Taper: MT#5
Coolant Tank Capacity: 15 gallons (56.8 liters)
Lubrication System: Automatic
Chuck Size: 16"
Machine Length: 114" (2,896 mm)
Machine Width: 53" (1,346 mm)
Machine Height: 70" (1,778 mm)
Machine Weight: 7,500 lbs (3,402 kg)
