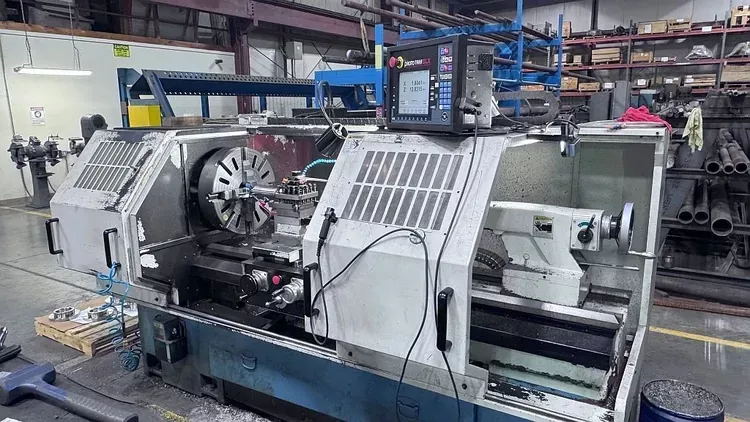

Prototrak ProtoTRAK SLX with 10.4" color active-matrix LCD 1,800 RPM TRL2460SX 2 Axis

Manual Operation: 2-axis digital readout (DRO)
Servo Motors: AC brushless with ground ball screws
Automatic Lubrication System
Integrated Coolant System
Swing Over Bed: 24" (609.6 mm)
Swing Over Cross Slide: 14.5" (368.3 mm)
Distance Between Centers: 60" (1524 mm)
Height of Centers: 12" (304.8 mm)
Cross Slide Travel (X-axis): 12.5" (317.5 mm)
Bar Capacity: 3.937" (100 mm)
Spindle Bore: 4.09" (104.4 mm)
Spindle Nose: D1-8 Camlock
Spindle Taper: MT#8 reducing to MT#5
Spindle Drive Motor: 15 HP
Spindle Speed (Low Range): 40–670 RPM
Spindle Speed (High Range): 100–1,800 RPM
Number of Speeds: 2
Chuck Size: 16"
Tailstock Quill Travel: 6.88" (174.8 mm)
Tailstock Quill Diameter: 3" (76.2 mm)
Tailstock Taper: MT#5
Coolant Tank Capacity: 15 gallons (56.8 liters)
Bed Width: 15.75" (400 mm)
Bed Height: 12.625" (320.7 mm)
Machining Length: 60"
Turning Diameter: 14.5"
Dimensions: 114" x 53" x 70"
Approximate Weight: 7,500 lbs (3,402 kg)
