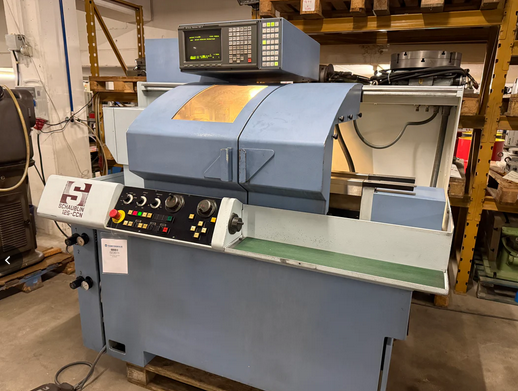

Schaublin GE FANUC Series 20-T 5000 rpm 125 CCN 2 Axis

Z Axis Travel: 400 mm
X Axis Travel: 180 mm
Rapid Traverse: 7.5 m/min
CNC Control: GE FANUC Series 20-T
Centre Height: 125 mm
Distance Between Centres: 500 mm
Swing Over Cross-Slide: 115 mm
Swing Over Bed: 270 mm
Spindle Bore: 28 mm
Spindle Speed Range: 0–5000 rpm
Spindle Power: 7.5 / 5.5 kW
Spindle Torque Max.: 58 / 42 Nm
Spindle Nose: Camlock D1-3
Spindle Taper: Morse Taper 3
Collet Type: B32
Spindle Stroke: 160 mm
Spindle Diameter: 45 mm
Feedrate Longitudinal Max.: 5000 mm/min
Feedrate Transversal Max.: 5000 mm/min
Air Connection: 5–6 bar
Total Power Requirement: 15 kVA
Machine Weight Approx.: 1415 kg
Machine Dimensions Length: 1700 mm
Machine Dimensions Width: 1300 mm
Machine Dimensions Height: 1700 mm

Machine lamp
Tailstock
Coolant system
