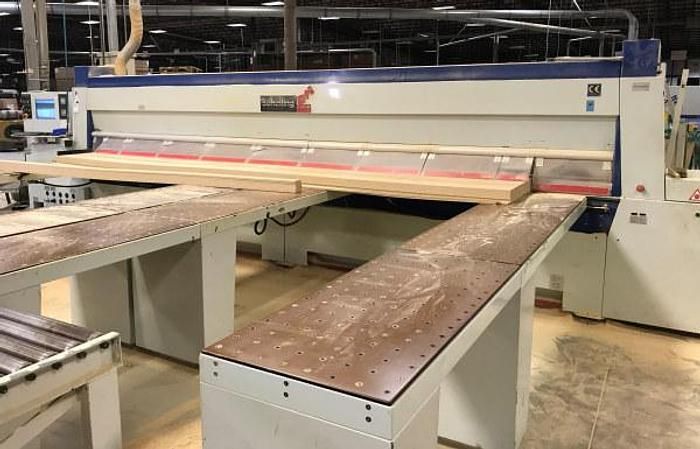

Schelling FMH 580/310

REAR-LOAD PANEL SAW
(460/60/3, 30 KW, 32 amp electrics)

Standard Specifications:
- 19', (5800 mm) max. length work piece capacity
- 18", (450 mm) diam. x 30 mm bore, 72-tooth main saw blade
- 8", (200 mm) diam. X 20 mm bore, 36-tooth scoring saw blade
- Up to 25 HP, (19 KW) main saw motor
- 2 HP, (1.5 KW), 3,396 RPM scoring motor
- 4.45", (113 mm) clamp opening
- Up to 120 m/min feed speed, (forward & back)
- 1,000 cfm, (~4,700 m3 ) dust required, (two 4" diameter & one 6" diameter dust-outlet)
- Weighs approx. 23,000 lbs.
