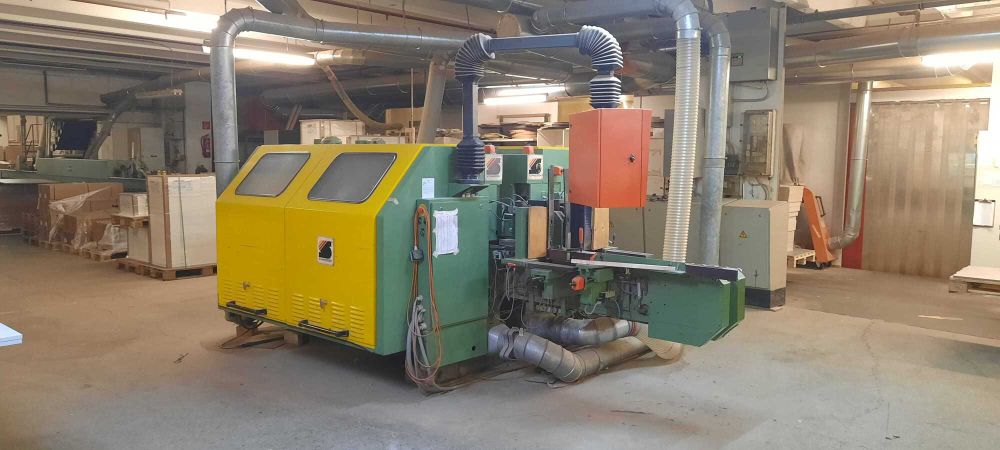

Schwabedissen DAA80/3 Double End Profile Mill

Working width 2050 mm
5 motors per side:
Scoring cutter
Cutting cutter 4.5 / 6.3 kW 2900/5830 rpm

3 milling spindles each 3.7 / 5.2 kW 2900 / 5820 rpm
Operating in counter-rotation and co-rotation
Milling spindles are position-controlled
Conveyor chain with cams, cam spacing 500 mm
The number of raised cams can be set at the control panel; all cams, or 2 or 3 cams at a time, can be pneumatically raised
The chain linings and the upper pressure belt were replaced approximately 5 years ago and are in very good condition.
The machine has seen very little use since then.

Electric width adjustment and position control of the motors via a swiveling control panel at the machine's infeed.
The control panel with the motor control unit has also been technically overhauled.
Connected load: 41 kW

Machine dimensions:
Length: 4900 mm (from the beginning of the conveyor to the end of the conveyor at the discharge)
Width: 2600 mm (each side, including the conveyor and hood, is 1300 mm wide)
Complete with control cabinet and converter
Complete with extraction pipes up to the main duct
Complete with operating instructions
The machine is in very good, immediately operational condition.
