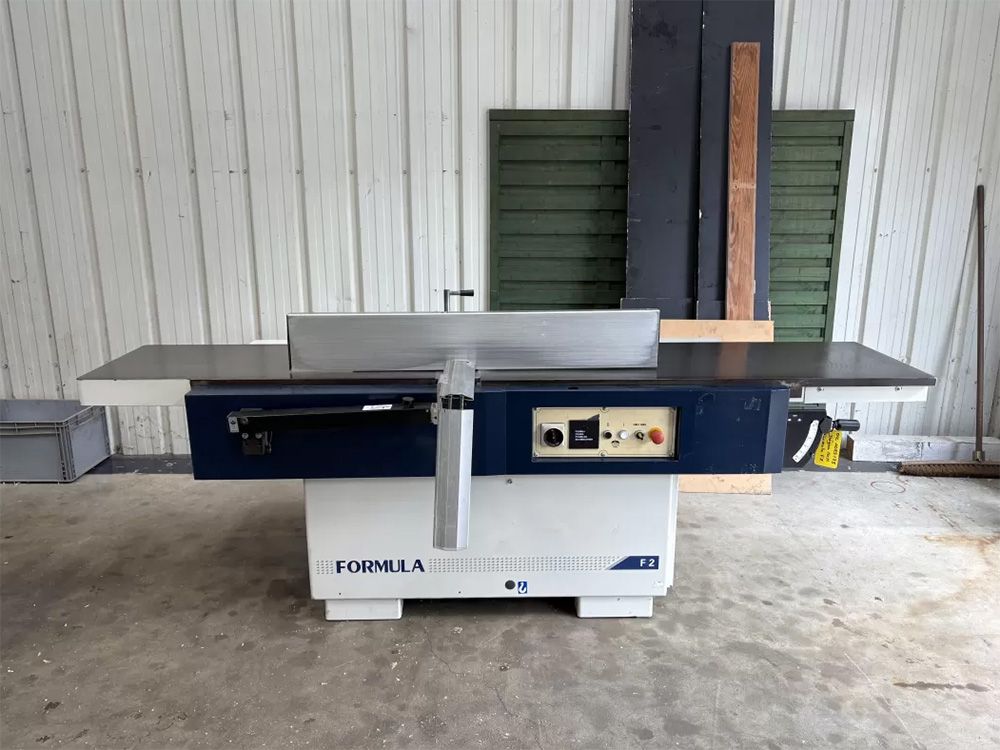

SCM FORMULA F2 Jointer
Ref :
2760792-15-MT
Condition :
Used
Manufacturer :
SCM
Model :
FORMULA F2
Short Description :
Jointer
Year(s) :
2010
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
MACHINING CAPABILITIES:
- Usable working width 520 mm
- Shaft speed 5000 rpm
- Entry table 1500 x 550 mm
- Outfeed table 11800 x 550 mm
- Tiltable guide on sliding mechanism with -45/45° indicator
- Adjustable feed size, max 8 mm
OTHER FEATURES :
- General power supply 400v. Three-phase 50Hz
- Automatic star-delta start
- Installed power 4 kW (5.4 hp)
- 4-bladed shaft Ø100 x 520 mm
Recommended tools: Knives 520 x 35 x 3 mm
- Worktop height 84 cm
- Suction port Ø120 mm
- CE marking, Lockable disconnect switch, Emergency stop
Dimensions (WxDxH): 2730 x 1000 x 1100 mm
Weight 675 kg
