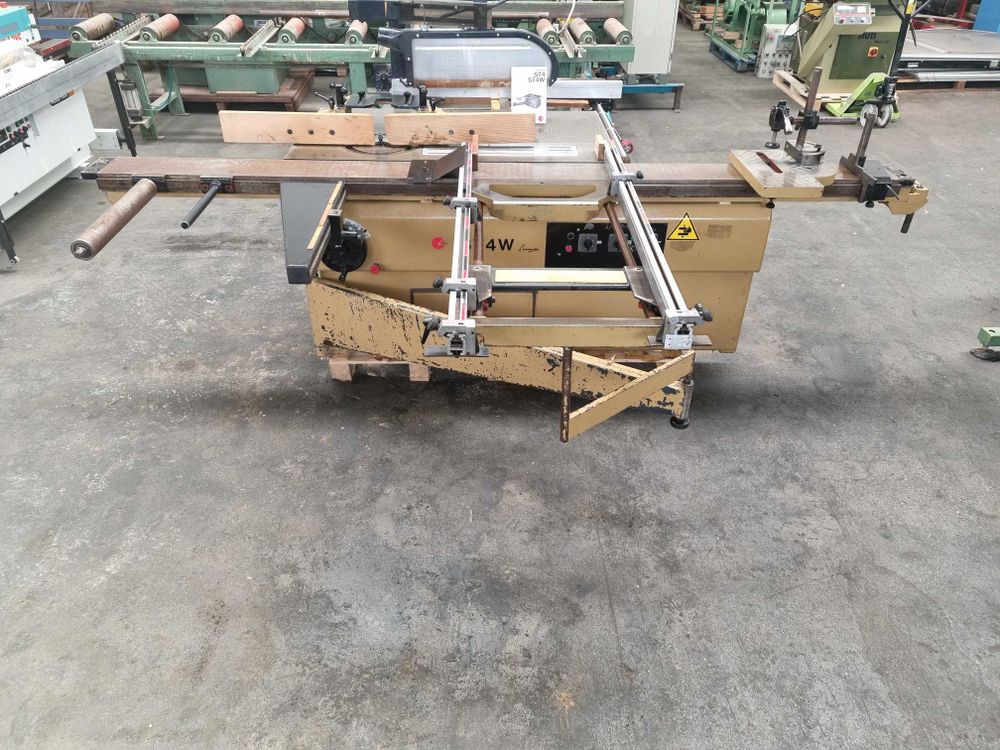

SCM ST4W Tenoning squaring machine with scissor blade

Carriage lenght 3050 mm (stroke 3200 mm)
max blade diameter 400 mm
max scissor blade diameter 125 mm
spindle diameter 35 mm – vertical stroke 185 mm
blade motor power 5,5 kw (7,5 hp) – speed 3200/4500/6000 rpm
scissor blade motor power 0,75 kw (1 hp) – speed 8300 rpm
spindle moulder motor power 4 kw (5,5 hp) – speed 2900/4400/6000/7200 rpm
max side fence opening 1300 mm
squaring carriage with aluminium guides for parallel and inclined sizing
blade protection with metal frame
tenoning table with piec lock device
user manual
voltage 380V-50Hz-3ph
machine tested (video available by WhatsApp on request)
overall dimension 3500x2200x1600h mm
weight 1100 kg
