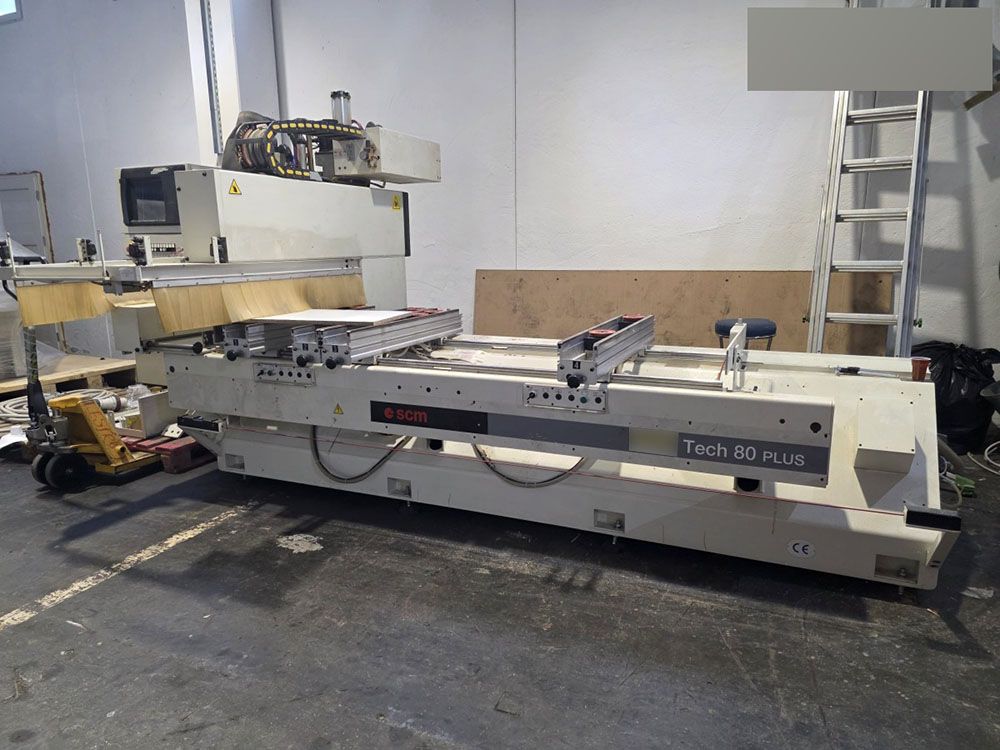

SCM TECH 80 PLUS

CNC machine
It is equipped with a powerful 6.6 kW HSK 63 F milling unit and a tool change system with seven positions and a drilling head with 14 drill bits.
The machine also includes a 3 kW saw that runs along the X-axis and a vacuum pump.
The work table, which measures 2500 mm in length and 1100 mm in width, offers plenty of space for processing different materials.
Main engine with HSK F63 coupling and rotation speed ranging from 1500 to 24000 revolutions per minute.
The maximum X-, Y- and Z-axis movements are 2700 x 1300 x 250 mm, which enables the processing of different sizes of parts.
The CNC TECH 80 Plus contains one milling spindle and has a motor power of 6.60 kW.
The total weight of this device is 2700 kg, and the dimensions are 5000 x 2400 x 2500 mm.
The machine is sufficiently robust and precise, which ensures top quality processing.
