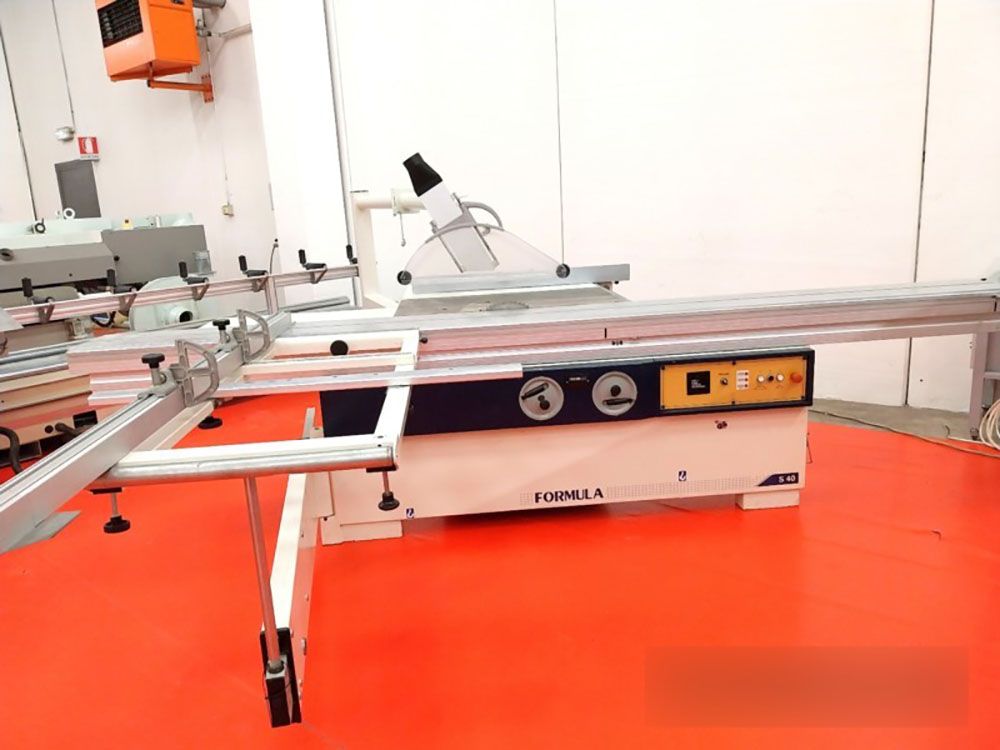

SCM TECNOMAX FORMULA S 40

Panel saw with tilting blade and scoring unit for carpentry workshops, custom-made furniture,
furniture, panels, doors, wooden window frames, plastics, composite materials,
aluminium and various other materials - CE Standard

Aluminium carriage length 3800 mm
Cutting width with parallel guide 1500 mm
Blade diameter 400 mm F30
Scoring blade diameter 120 mm F20
Cutting height at 90° 130 mm
Cutting height at 45° 92 mm
Blade inclination 0-45 degrees
Manual lifting and tilting by means of front handwheels
Parallelogram blade guard
Base suction port diameter 120 mm
Blade guard suction port diameter 80 mm
Motor power 7 Kw
Outfeed table extension
Overall dimensions of assembled machine mm 4000 x 4300 x 1500 h
Overall dimensions of disassembled machine for transport mm 4000 x 1200 x 1500 h
Weight kg 829
