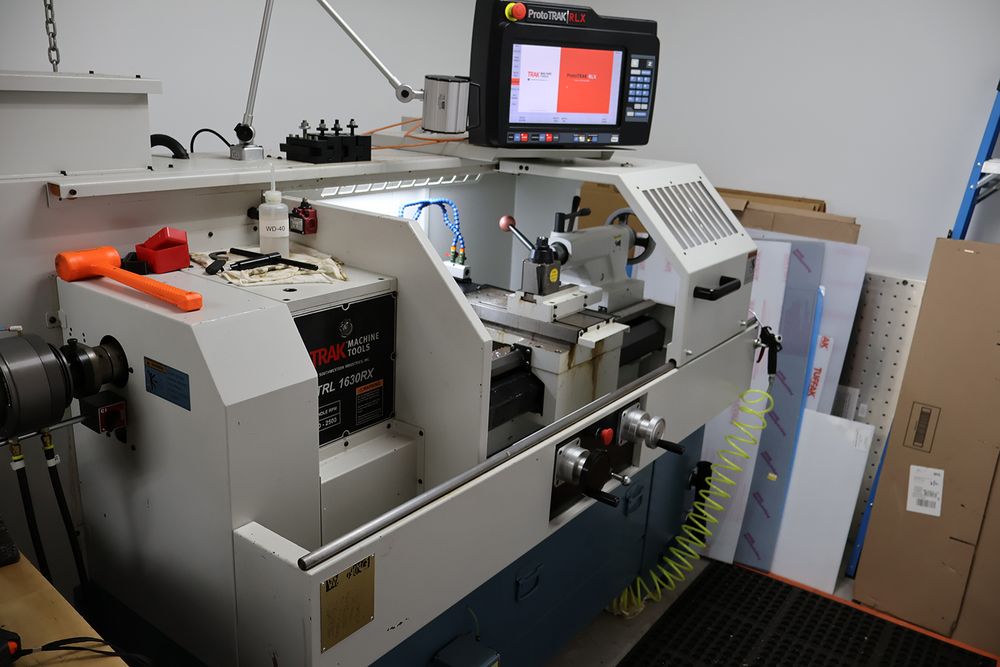

Southwestern Industries Southwestern Industries ProtoTRAK RLX CNC control 2500 rpm TRAK 1630-RX 2 Axis

8.5" X-axis travel
30" Z-axis travel
Southwestern Industries ProtoTRAK RLX CNC control
Two-axis digital readout during manual operation
Enhanced ProtoTRAK Assistance
DXF converter
Advanced features
Traking
Touch screen
Graphics
Math help
Constant surface speed
Programmable spindle speeds
Servo motors
Ground ballscrews
AC drives and motors
Electronic handwheels for X and Z
Jog stick for rapid traverse
Inch/metric threading capability
TRAK four-station programmable turret
3-jaw Buck chuck
4-jaw Buck chuck
Air-actuated 5C collet closer with nosepiece
Steady rest
Live center
Hardened and ground bed ways
Automatic lubrication system
Coolant system
Splash guard
16" swing over bed
8" height of centers
8.6" swing over cross slide
16" swing over saddle wings
30" max distance between centers
D1-6 spindle mount
150–2500 rpm spindle speed range
2.12" spindle bore
#5 MT spindle taper
12.6" bed width
5.75" tailstock quill travel
2.36" tailstock quill diameter
#4 MT tailstock taper
7.5 hp spindle motor
2500 lbs machine weight
82" machine length
46" machine width
67" machine height
