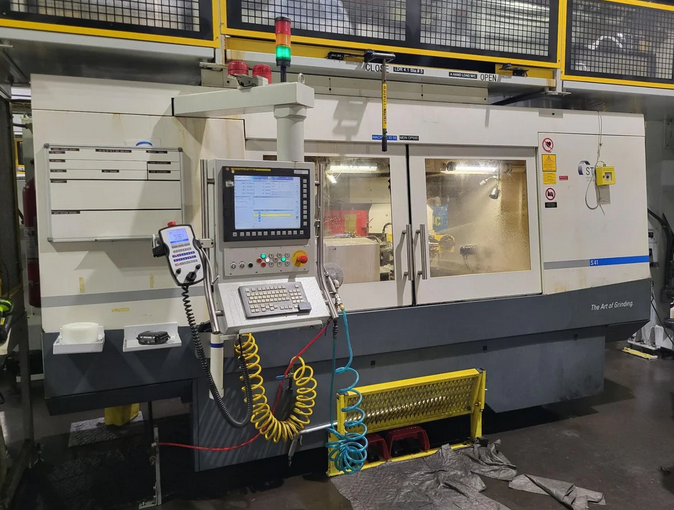

Studer S41

Centre Height: 275 mm
Max Workpiece Diameter: 550 mm
Z Axis Travel: 1150 mm
X Axis Travel: 350 mm
Max Workpiece Dimensions: Ø550 × H1000 mm
Workpiece Weight: 250 kg
Grinding Wheel Diameter: 500 mm
Grinding Wheel Width: 100 mm
Grinding Wheel Swivelling Range: -45° / +225°
Grinding Wheel Peripheral Speed: 50 / 80 m/s
Grinding Wheel Speeds: 0 – 4500 t/min
Tailstock Spindle Stroke: 60 mm
Tailstock Spindle Diameter: 60 mm
Air Connect: 5 bar
Voltage: 3x 400 V 50 Hz
Workpiece Spindle Motor: 15 kW
Machine Weight: 9,000 kg
High-resolution C-axis
Axes B1 + B2
Coolant System
Internal Grinding Attachment with 2 Spindles
Lamp
Status Light
Electronic Handheld Control
Foot Pedal
