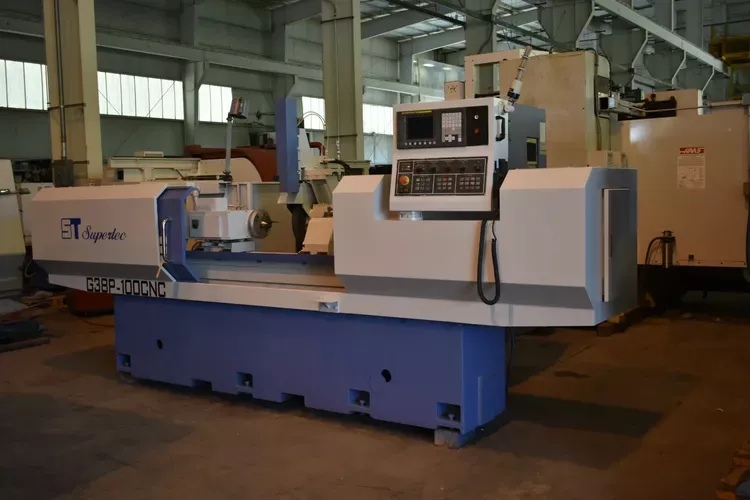

Supertec G38P-100CNC

Table Z-Axis Travel: 51"
Wheelhead X-Axis Travel: 11"
Swing Over Table: 15"
Grinding Diameter, Maximum: 14"
Distance Between Centers: 40"
Weight Capacity Between Centers: 330 lbs
Table Swivel Angle Range: +/- 7°
Workhead Spindle Speeds: 10 to 600 RPM
Workhead & Tailstock Spindle Taper: 4 MT
Grinding Wheel Diameter: 20"
Grinding Wheel Width: 2" to 4"
Grinding Wheel Hole Diameter: 6"
Grinding Wheel Speeds: 1250 RPM
Wheelhead Motor: 10 HP
Workhead Motor: 2 HP
Hydraulic Motor: 0.38 HP
Longitudinal Table Feeds: Infinite to 236 IPM
Longitudinal Rapid Feedrate, Maximum: 394 IPM
Workhead Swivel Angle Range: 90°
Overall Dimensions, L x W: 169" x 109"
Overall Height: 71"
Weight: 13,230 lbs

Features / Equipment
FANUC Series Oi-Mate TC CNC Control
Automatic Incremental Wheelhead Infeed
Combination Live/Dead Spindle Vari-Speed Workhead
Heavy-Ribbed Box-Type Meehanite Cast Base
Automatic Lubrication System
Coolant System (Tank & Pump)
