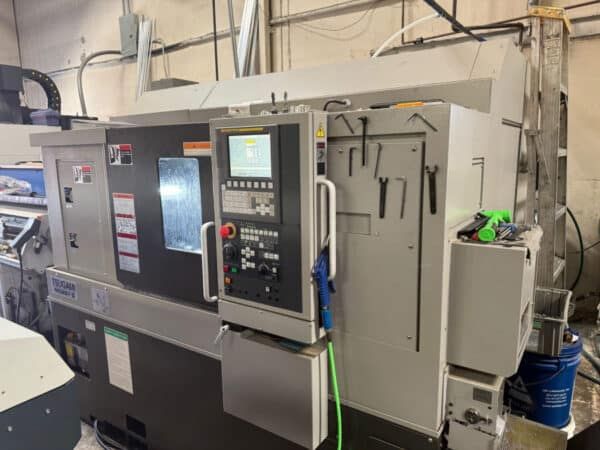

Tsugami Fanuc 0i-TF Variable Speed M08SY-II 5 Axis

X axis travel: 8.7″
Y axis travel: 3.94″
Z axis travel: 15.75″
W axis travel: 19.92″
C axis travel: 0.001°
Rapid rate Z axis: 1,062 IPM
Rapid rate X axis: 945 IPM
Control: Fanuc 0i-TF
Tool touch setter
Bar capacity: 2″
Swing: 11″
Turning diameter: 11″
Turning length: 14.96″
Chuck size: 8″
Sub spindle: 6″
Spindle speed: 4,500 RPM
Spindle motor: 14.8 HP
Live tooling speed: 5,000 RPM
Turret tools: 12 station
Machine dimensions: 97.24″ x 72.83″ x 75.98″
Machine weight: 13,000 lbs
Live tooling
(2) axial milling attachments
(2) radial milling attachments
Complete static tooling package
OD Type-I
OD Type-II
ID single bore
ID double bore
Chip conveyor
Tool presetter
Bar feeder
Parts catcher
Y axis
Sub spindle
5-axis capability
