Voith board paper machine ( waste stock prep) 2.900 mm wire width 500-1100gsm 120 TPD

Makes:
-Paper production: VOITH SULZER + ABB + SIEMENS AG
-Core layer pulper – Pulp line: ANDRITZ + ABB + SIEMENS AG
-Lamination & Board Cutting sections: WOLFF & SCHON – C. ILLIES & CO. + ABB + SIEMENS AG
+ PIZZOLATO – OVER MECCANICA S.P.A.
- Water Clarification: KROFTA S.A.

Wire Width: 2.900mm
Product Net Width: 2.400mm
Working Speed: 70-170m/min
Product Weight Range: 500-1100gsm

Total Length of Production Line: 100m

Full pdf photos file by section available upon request .

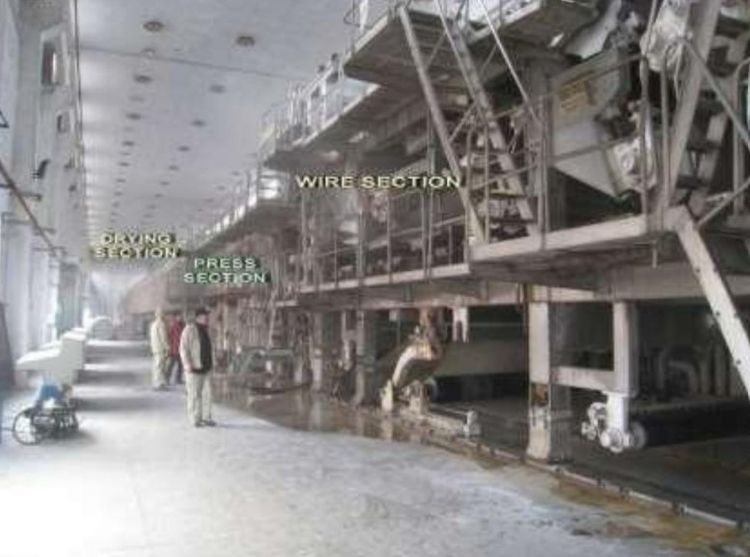

Production Line description:
Waste Paper Refining, Pulping, Cleaning, board machine, Laminating -. Rewinder - Unloader Packing

Accessory Equipment for Pulping Plant
1 Chain Type Conveyor Belt
2 Hydraulic Pulper
3 Fiberizer
4 High Density Filter
5 High Level Tank
6 Sludge Separator
7 Medium Concentrate Sludge Remover
8 Press Screen
9 Round Screen Concentrator
10 Slanting Screen
11 White Water Tank
12 Showers for Cleaning Fiberizer, Hydraulic Pulper and Sorter
13 Twin Grinder
14 Pulp Pump
15 High pressure Water Pump
16 White water pump
17 High Concentration Hydraulic Pulper
18 Round Drum Screen
19 High Power Screen
20 Sludge Separator
21 Grindler
22 High Pressure White Water Pump
23 Showers for Cleaning, Hydraulic Grindler, Fiberizer and Filter

Accessory Equipment for Paper Making Plant
1 Headbox for Core, Top and Bottom Wire
2 Core, Top and Bottom Wire
3 Dewatering Wire
4 Couch Roll for Waste Paper Pond
5 Pumping System
6 Pre-Press
7 Press
8 56 Dryer Cylinder in 5 Section
9 Lubricating Section
10 Thermo Hood
11 Hydraulic Broke Pulper for Damaged Paper
12 3-couch Calendar
13 ABB QCS Scanner for humidity & grammage
14 Winder
15 ABB Water Level controlling System
16 Siemens Paper Machine Driving System
17 Control Panel
18 COD Online Automatic Analyzer

Equipment for Paper Finishing
1 P.J. WOLFF & SOHNE Laminating Machine
2 PIZZOLATO Cutting Machine
3 SINOLION Plastic Film Warping Machine
4 Roller type Conveyor
5 Plastic Film Shrinking Machine

Power Supply Facilities
1 Low-Voltage Power Distribution Cabinet
2 High-Voltage Power Distribution Cabinet
3 UPS Cabinet
4 Control Panel
5 I/O Cabinet
6 Capacitance Cabinet
7 Inverter 8 800 to 1600 KVA Transformers

Waste Water Treatment Plant
1 KROFTA SPC40 Dissolved Air Flotation Type Waste Water Clarifier
2 Sludge Screening System
3 Sand Type Filtering Tower
4 Waste Water Storage Tank
5 Water Storage Tank
6 Pumping System

Other Factory Equipment and Facilities
1 Overhead Crane from 3 tons to 16 tons
2 Forklift Truck
3 Pallet Truck
4 Ground Scale
5 Laboratory Equipment
6 Metal Work Equipment
7 Air Compressor 8 Air Dryer
Transformer Substation
1 Wire Framework
2 5000KVA Transformer
3 Low-Voltage DC Power Distribution Cabinet
4 Low-Voltage AC Power Distribution Cabinet
5 DC Battery Cabinet
6 Control Panel
