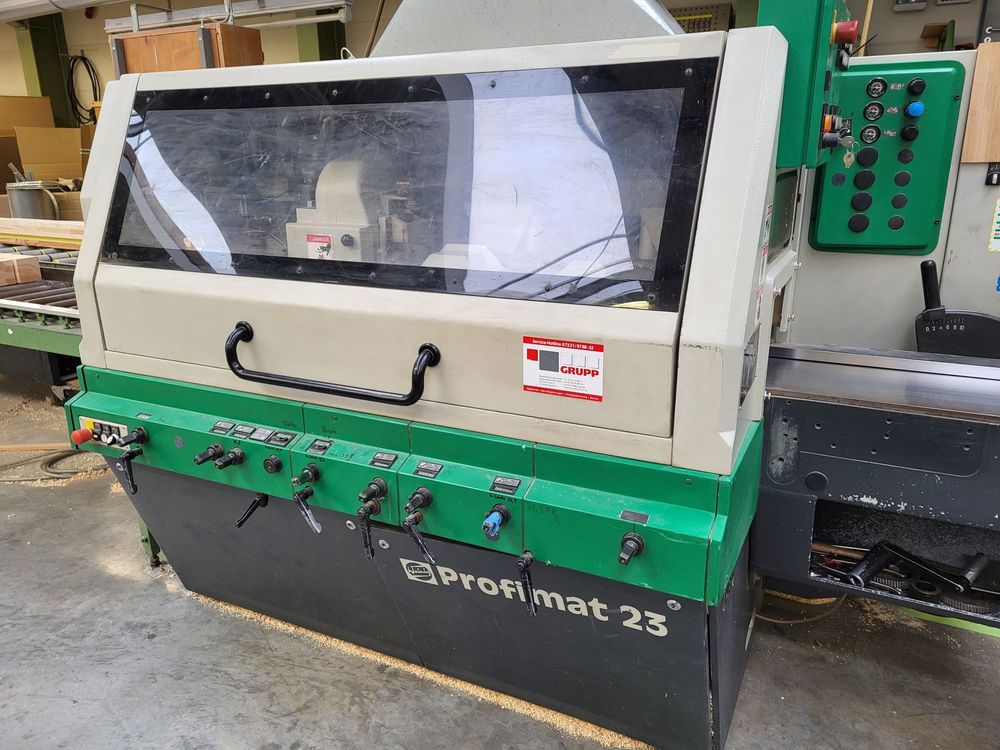

Weinig Profimat 23

Max. working width: 230 mm
Max. working height: 130 mm
Number of spindles: 5

1st spindle: bottom
Spindle diameter: 40 mm
Clamping length: 240 mm
Speed: 6000 rpm
Motor power: 4.0 kW

2nd spindle: right
Spindle diameter: 40 mm
Clamping length: 140 mm
Speed: 6000 rpm
Motor power: 7.5 kW
Shared motor with left spindle

3rd spindle: left
Spindle diameter: 40 mm
Clamping length: 140 mm
Speed: 6000 rpm

4th spindle: top
Spindle diameter: 40 mm
Clamping length: 240 mm
Speed: 6000 rpm
Motor power: 5.5 kW

5th spindle: bottom
Spindle diameter: 40 mm
Clamping length: 240 mm
Speed ​​6000 rpm
Motor power 4.0 kW

Motor brakes: mechanical
Upper spindle height adjustment: electric with feed
Feed braking system: Yes
Flow speed infinitely variable up to: 5 - 24 m/min
Feed roller pressure: pneumatic
Flow power: 2.2 kW
Flow drive: cardan shaft
Lubricant pump: manual
Max. chip removal jointing: 10 mm
Jointing rebate cutter on jointer: Yes
Driven rollers in table: 1 pc.
Control type: knob operation
Spindle dimension display: mechanical digital display
Infeed rollers in front of jointer: Yes
Central lubrication point: Yes
Description: right spindle pneumatically raised and lowered 45 mm
Max. saw diameter 200 mm

Upper spindle horizontally pneumatically indexed forward and reverse via selector switch
Max. Saw blade diameter 200 mm
Both spindles engaged simultaneously
Weight approx.: 3000 kg
